Picking the right Solar Connector can really make a difference in how well your solar system performs. Honestly, with so many options out there, it can be pretty overwhelming trying to figure out what’s best. Factors like compatibility, durability, and efficiency are super important, but sometimes it’s hard to know what to focus on.
A lot of folks run into trouble when choosing Connectors—they might miss some key specs that affect how long the system lasts or how safe it is. Getting a good handle on these details can help you avoid costly mistakes. For example, using the wrong connector could lead to system failures or inefficiencies, which means more money out of your pocket in the long run.
It’s definitely worth talking to a pro or someone who knows their stuff before making a call. Getting trusted advice can really help you pick the best connectors for your setup. When you choose the right Solar Connector, you’re setting yourself up for a more reliable and efficient system. Just being aware of these little details can totally change your whole solar experience for the better.
Understanding Solar Connectors: Types and Functions
Solar connectorsplay a vital role in solar energy systems, linking photovoltaic (PV) panels to Inverters and other electrical elements. Understanding the different types of connectors is essential for effective installation. The most common connector type is theMc4 Solar Connector, known for its robust design and ability to withstand harsh environmental conditions. According to industry data, approximately 90% of solar installations utilize MC4 connectors due to their reliability.
When selecting connectors, consider the wire gauge and environmental factors. The wire gauge impacts efficiency; thinner wires lead to voltage drops. Temperature extremes can also affect performance. A reliable connector must ensure safe and efficient connections, even in diverse weather conditions. Studies show that poor connections can reduce energy output by up to 10%.
Tips: Ensure compatibility with existing systems. Research NEC (National Electrical Code) guidelines for safety. Regularly inspect connectors for signs of wear or corrosion. Remember, the quality of connectors can greatly affect overall performance.
Key Factors in Selecting Solar Connectors for Different Systems
Choosing the right solar connector for your system involves several key factors. The voltage and current ratings of the connectors are crucial. Ensure they match your solar panels’ specifications. A mismatch can lead to inefficiency or even damage. Always check the manufacturer's guidelines to avoid potential issues.
Another important consideration is the environmental conditions. Solar connectors must withstand UV exposure, moisture, and temperature extremes. Select connectors rated for your local climate. For instance, areas with heavy rainfall require connectors that can prevent water ingress effectively.
It's also vital to think about the ease of installation. Some connectors are designed with user-friendliness in mind. A simpler setup may save time and reduce errors. However, a more complex design might offer better long-term reliability. Reflect on your technical capabilities before making a decision. Consider whether you might need professional assistance.
Compatibility Considerations: PV Modules and Inverter Requirements
Choosing the right solar connector involves understanding compatibility with PV modules and inverters. Each component in a solar system must work seamlessly together. This requires careful attention to specifications, types, and ratings. For example, consider voltage and current ratings. Misalignment can lead to efficiency loss or damage.
PV modules often have specific connector types. Common types include MC4 and Tyco. Check the specifications of your solar panels. This ensures they match your inverter’s requirements. Measure existing connectors or consult design documentation. Using incompatible connectors might result in higher resistance and reduced performance.
In addition, environmental factors can affect connector choice. Regions with high humidity or temperature fluctuations require more robust solutions. You might need connectors with better insulation or weatherproofing. Reflect on installation conditions. Often overlooked, these details can significantly impact the longevity and efficiency of your solar setup.
Evaluating Current and Voltage Ratings of Solar Connectors
When selecting solar connectors, current and voltage ratings are crucial. Each solar system operates under specific power conditions. Understanding these ratings helps in choosing the right components for your setup.
Many people overlook these details. A connector rated too low may fail under load. For example, if your system produces 20 amps and the connector is rated for 15 amps, it can lead to overheating or failure. Always check the specifications carefully.
Voltage ratings are equally important. A mismatch can cause severe issues. For higher voltage systems, the connectors must handle those levels without degradation. Also, consider environmental factors like temperature and humidity. These can affect performance.
When connecting cables, attention to these details can save you trouble later. A well-chosen Solar Connector Cable ensures safety and efficiency. Ensure you assess all ratings thoroughly for a reliable installation.

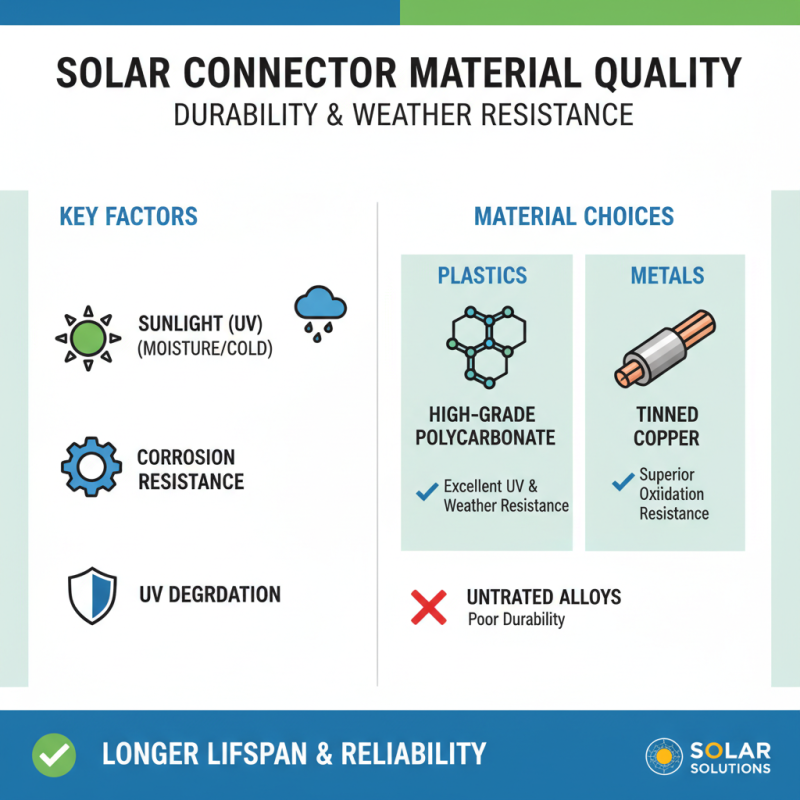

Durability and Weather Resistance: Material Quality of Connectors
When selecting solar connectors, durability is a critical factor often overlooked. The material quality directly affects a connector’s lifespan, especially under harsh weather conditions. Connectors exposed to rain, snow, or intense sunlight must resist corrosion and UV degradation. For example, connectors made with high-grade polycarbonate plastics offer strong weather resistance. Metals like tinned copper resist oxidation better than untreated alloys.
The Qc4 Solar Connector is a solid example of careful material engineering. Its housing is designed to repel water and dust, which reduces maintenance needs over time. However, no material is completely impervious. Even high-quality connectors can develop micro-cracks after years of thermal cycling. This subtle wear affects contact resistance and performance, showing that no selection is perfectly future-proof.
Another point to consider is sealing quality. A good connector has tight seals that prevent moisture ingress. Poor sealing can allow water inside and cause short circuits or corrosion. While the Qc4 Solar Connector generally performs well, it’s wise to inspect your installation occasionally. Over time, environmental stress might weaken seals, requiring preventive checks. This approach ensures the system continues generating clean energy reliably.
Industry Standards and Certifications for Solar Connectors
When selecting solar connectors, understanding industry standards and certifications is essential. These standards ensure safety, efficiency, and compatibility. Connectors must withstand harsh weather and electrical loads. Key certifications include IEC 62852 and UL 6703. These ensure the products meet international safety norms.
Certifications can be complex. Manufacturers may not always provide clear information. It’s important to ask for documentation when purchasing. Look for connectors that have been tested for temperature and mechanical stress. These tests play a critical role in ensuring reliability.
Over time, standards may evolve. New materials and technologies can change what is considered best practice. Staying informed is crucial. Regularly check for updates from reliable sources. This awareness will help you make informed choices as you select the right connectors for your solar projects.
How to Choose the Right Solar Connector for Your Needs? - Industry Standards and Certifications for Solar Connectors
| Connector Type | Current Rating (A) | Voltage Rating (V) | IP Rating | Temperature Range (°C) | Materials Used | Certifications |
| MC4 | 30 | 1000 | IP67 | -40 to +85 | PVDF and Copper | UL, TUV |
| Tyco/Simplified | 25 | 600 | IP65 | -20 to +75 | Polyester and Aluminum | IEC, CE |
| H4 | 45 | 1500 | IP68 | -40 to +90 | TPE and Stainless Steel | ISO, UL |
| Sunplug | 40 | 1000 | IP67 | -30 to +80 | PVC and Copper | TUV, CE |
Cost vs. Quality: Making Informed Purchasing Decisions
When choosing a Solar Panel Connector, balancing cost and quality is crucial. A study by the National Renewable Energy Laboratory (NREL) shows that connectors can contribute up to 10% of the total system cost. This highlights the need for careful decision-making. Cheaper connectors might save money initially, but they often lead to increased failures, which can be expensive to replace. A well-chosen solar panel connector can last over 25 years, maximizing long-term value.
Quality connectors are vital for system reliability. The International Electrotechnical Commission (IEC) outlines rigorous testing standards. These standards ensure connectors operate under extreme weather conditions. Using lower-quality products, however, may result in system inefficiencies and costly downtime. Some reports indicate that poor connections can reduce energy output by up to 5%.
Many consumers feel overwhelmed by choices. It’s easy to gravitate towards the lowest price. However, think about long-term performance and warranties. A connector that meets stringent safety and performance guidelines can provide peace of mind. Evaluating both cost and quality ensures that your solar panel connector works effectively and lasts over time. Reliable systems are essential for optimal energy generation, making this decision a significant one for anyone investing in solar technology.
Cost vs. Quality of Solar Connectors
This chart compares the cost and quality rating of solar connectors in different price categories. The bar chart represents the price in dollars, while the line chart illustrates the quality rating on a scale of 10. This information can help you make informed purchasing decisions based on your specific needs.
Essential Guide to Solar PV Wiring Harnesses: Enhancing Efficiency and Safety in Solar Installations
In the rapidly evolving industry of solar energy, the efficiency and safety of solar installations depend significantly on the quality and design of the wiring harnesses used. An essential component of solar photovoltaic (PV) systems, these harnesses facilitate efficient energy transmission while ensuring the overall safety of the installation. Recent industry reports indicate that properly designed solar PV wiring harnesses can increase system efficiency by up to 10%, underscoring their importance in maximizing energy output.
The versatility of solar PV wiring harnesses is one of their remarkable features. Manufacturers offer a variety of specifications tailored to meet diverse installation requirements, which can accommodate different panel sizes and configurations. This adaptability is crucial in the solar market, where installations vary widely from residential rooftop systems to large solar farms. Furthermore, the option for customization in shape and design allows project designers to craft solutions that fit specific project needs, further enhancing the efficiency and reliability of the overall system.
Safety considerations are paramount in solar installation, especially in mitigating risks associated with high-voltage systems. High-quality wiring harnesses are specifically engineered with durable materials and robust protective features to withstand environmental factors. According to safety guidelines outlined by industry associations, using well-designed wiring harnesses minimizes the likelihood of electrical hazards, promoting a safer installation environment. As the solar sector continues to grow, the emphasis on integrating advanced wiring harness technology will play a pivotal role in driving both safety and efficiency in solar energy applications.
FAQS
: Match connectors’ voltage and current ratings to your solar panels. Mismatches can cause inefficiency or damage.
Solar connectors must handle UV exposure and moisture. Choose connectors suitable for your local climate, especially in areas with rain.
Simpler connectors save installation time and reduce errors. However, complex designs may offer greater long-term reliability.
Key standards include IEC 62852 and UL 6703. They ensure safety and compatibility under harsh weather and electrical loads.
Certifications guarantee product reliability. Always ask for documentation to ensure connectors meet safety norms and endurance testing.
Cheaper connectors may lower upfront costs but can lead to failures. Quality connectors increase long-term reliability and performance.
Low-quality connectors may reduce energy output by up to 5%. This can lead to inefficiencies and additional costs over time.
Monitor reliable sources for updates on standards and technologies. Staying informed helps in choosing the best connectors.
Consider both the short-term cost and long-term performance. Reliable connectors provide peace of mind for energy generation.
Reflect on your needs and technical capabilities. It's okay to seek professional assistance if unsure about your options.
Conclusion
When choosing the right solar connector for your needs, it's essential to understand the various types and functions they serve within a solar power system. Solar connectors are crucial for ensuring compatibility between PV modules and inverters, while also dictating how efficiently a system operates. Key factors to consider include the current and voltage ratings, durability against environmental conditions, and adherence to industry standards and certifications.
Additionally, one must balance cost and quality, making informed purchasing decisions to ensure long-term reliability and performance. By evaluating these aspects, homeowners and installers can select the most suitable solar connector that satisfies both operational requirements and budgetary constraints, ultimately enhancing the efficiency and durability of solar energy systems.
