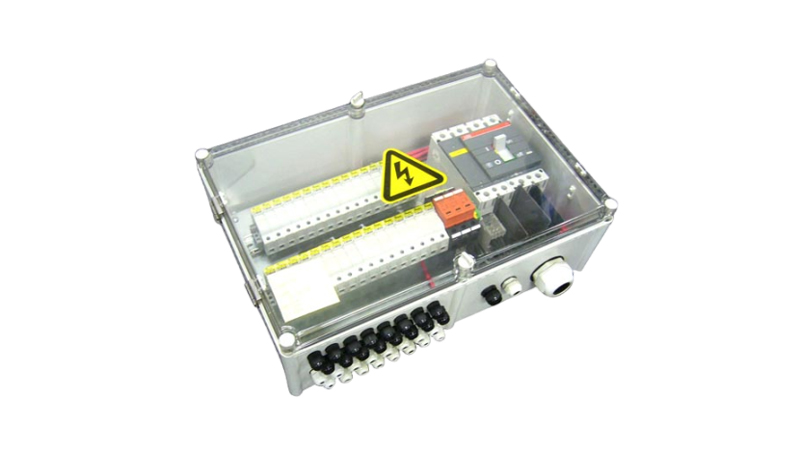

QC Solar Combiner Box(Plastic)

The Combiner Box (Plastic) is a cutting-edge solution that brings together advanced design and functionality to redefine energy management.

High reliability

Easy installation

Multi-layer protection

Resist corrosion

Technical Data

Type	QC-CB-P Standard Series	QC-CB-P-S Intelligent Series
Electrical Parameter
Combine current strings	2008/12/16
Input voltage range	100V -1000V	100V -1000V
Max DC input voltage(UDCmax)	1000V	1000V
Max one-way DC input current	15A	15A
Max after- combine input current(IPV max)	125A	125A
The PV input branch special fuse protection	YES	YES
Lightning protection device fault detection	NO	YES
DC overvoltage surge protection	YES
The grade of the DC circuit breaker	1000V200A
Communication Interface	NO	YES
RS485 reliable transmission range	NO	YES
Other parameters
Weight	18kg
Dimension(W/H/D)	500600180mm/Sizecan be customized
Input array P/N electrode wire diameter	4.0mm²~6mm²
Output P/N electrode wire diameter	18mm²~50mm²
Protection class	IP67
Temperature range	-30℃~+60℃
Relative humidity	0%~95%
operation altitude	≤3000m (More than 3000m need derating)

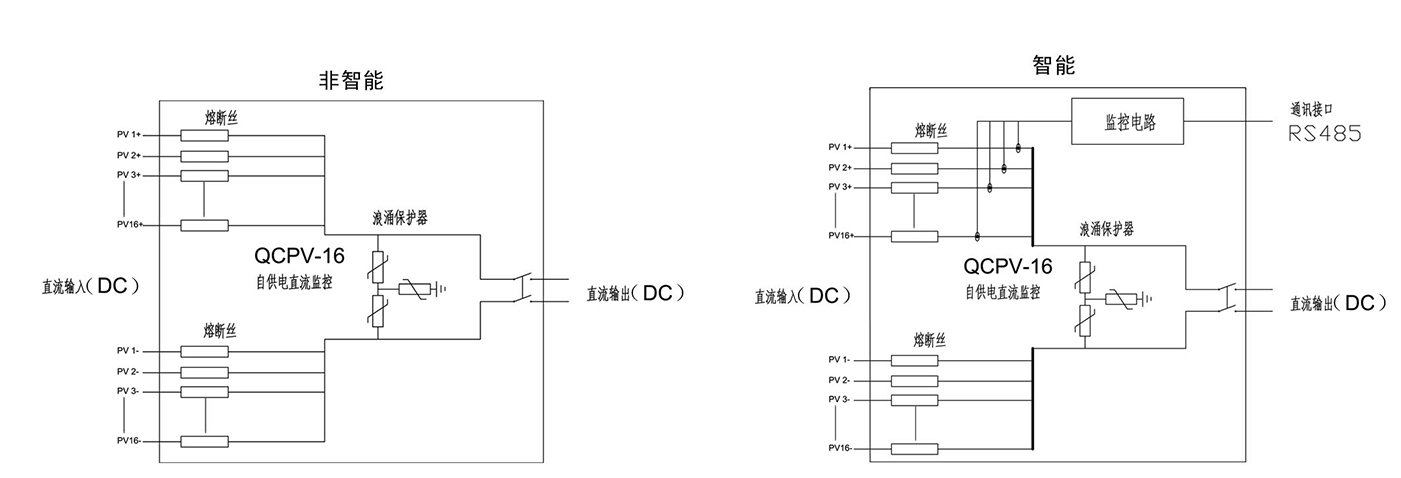

Dimensions(mm)

The Combiner Box (Plastic): Revolutionizing Energy Management

The Combiner Box (Plastic) is a cutting-edge solution that brings together advanced design and functionality to redefine energy management.

The unique cabinet and circuit design of this combiner box, founded on the special SMAT technology, is truly remarkable. During operation, it ensures a more uniform and smooth heat dissipation process. This not only protects the internal components effectively but also significantly enhances the overall performance and longevity of the device. The precision-engineered design is a testament to the commitment to quality and innovation.

The IP65 protection class design is a standout feature. It seamlessly combines the ability to withstand harsh and challenging environment with an efficient heat dissipation system. This synergy results in improved output energy efficiency and an extended working life for the combiner box. It ensures that the device can operate reliably even in the most demanding conditions, reducing the risk of downtime and maintenance costs.

In collaboration with international renowned component brands, the Combiner Box (Plastic) provides seamless integration of multiple essential functions. Connecting, monitoring, protection, anti-thunder, communication, fault location, and switch operations are all made more convenient, swift, safe, and reliable. This partnership guarantees that the components used are of the highest quality, ensuring optimal performance and durability.

QC Solar, the driving force behind this innovation, has once again demonstrated its prowess in creating products that are at the forefront of the industry. The Combiner Box (Plastic) is not just a device; it is a symbol of continuous progress and a commitment to providing solutions that meet the evolving needs of the energy field.

Whether it is for large-scale solar installations or smaller, specialized projects, this combiner box provides a reliable and efficient means of managing and optimizing energy flow. Its user-friendly design and advanced features make it accessible and valuable to professionals and enthusiasts alike.

In conclusion, the Combiner Box (Plastic) represents a significant leap forward in the world of energy management. With its innovative design, robust protection, and seamless functionality, it is set to play a crucial role in shaping the future of sustainable energy solutions.
