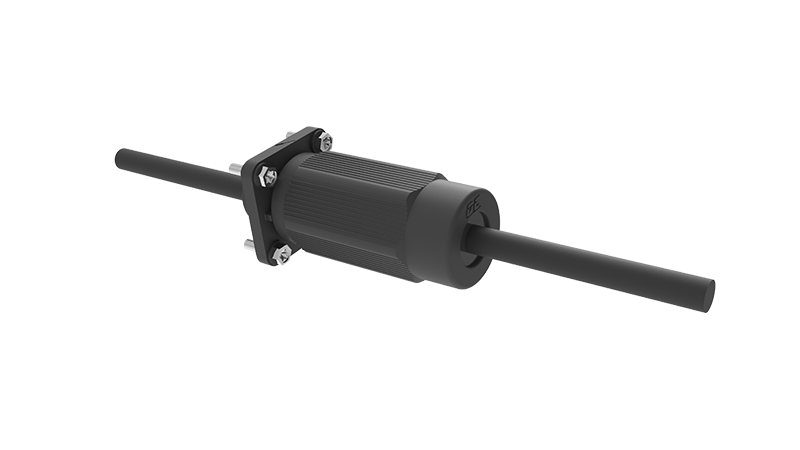

QC Solar Energy Storage Connector QE100

1. Small size, suitable for narrow space
2. Low contact resistance
3. Anti loosening standoffs, reliable connection
4. Easy and fast installation
icon28n2i

Double-locking

icon29173

Dual button design

icon5fq0

High Reliability

icon4arz

Easy installation

Technical Data

Technical characteristics
Type QE100
Wire range 16 mm²
Protection Touch Proof
Locking Overlapping screws interlock
Connector  Color Orange / Black
EMI/HVIL Note:Please select both EMI and HVIL or none
ELECTRICAL
Rated voltage 1500VDC
Rated current 100A
Insulator resistance > 2000MΩ
Contact resistance ≤ 0.5mΩ
Dielectric withstand voltage 8000V AC
Shielding type no shielding
ENVIRONMENTAL
Degree of protection IP68
Temperature limits  -40℃~+125℃
Ambient temperature -40℃〜+85℃
Flammability UL94-V0
Relative humidity 95% (40°)
MECHANICAL PARAMETER
Mechanical life 10-15year
Shake 10~55HZ Amplitude 0.75mm
55~500HZ Accelerated speed 10g

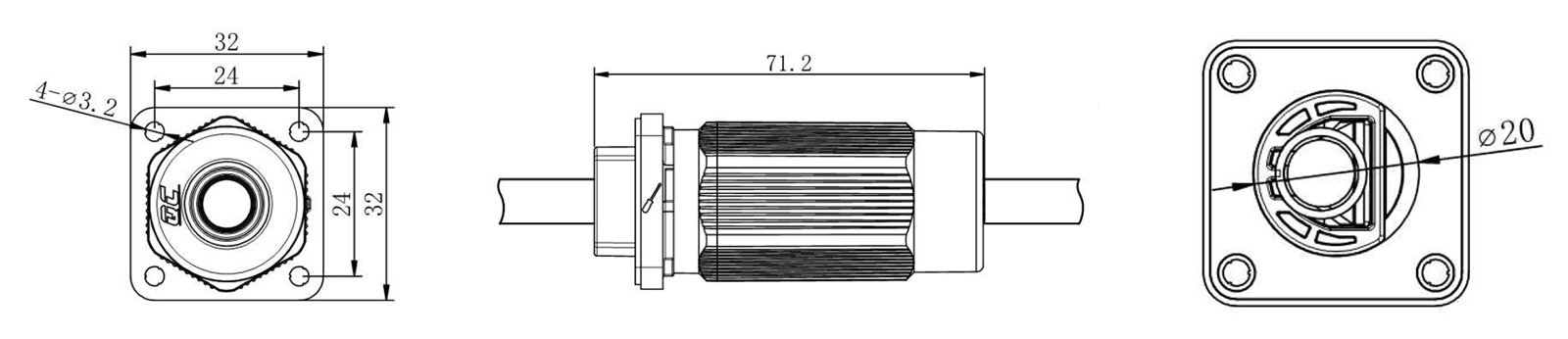

Dimensions(mm)

product-description18t2

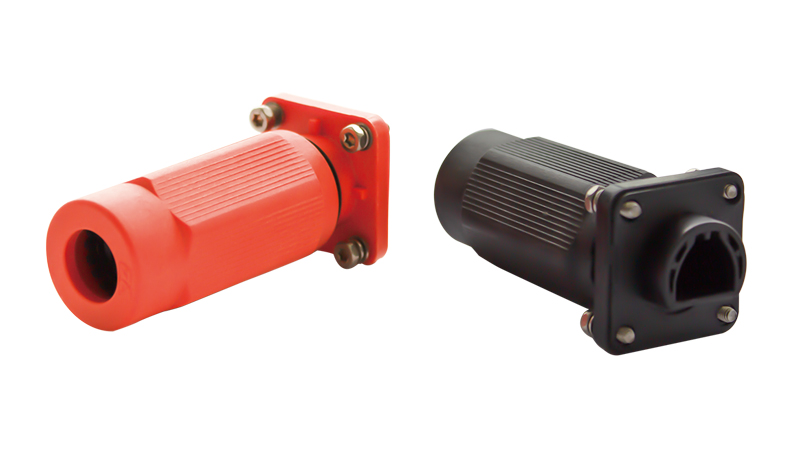

The QE100 is an outstanding product that holds a distinct position in the market due to a multitude of remarkable attributes.

The size of the QE100 is notably compact and small. This feature makes it an incredibly suitable option for scenarios where space is severely limited. It proves to be an ideal fit in cases such as within densely packed electronic apparatuses or within narrow compartments. Despite its diminutive dimensions, it doesn't in any way undermine its functionality. Instead, it presents a viable solution for those who aim to make the most of the available space without having to compromise on the performance aspect.

One of the significant advantages of the QE100 lies in its impressively low contact resistance. This characteristic plays a crucial role in ensuring a seamless and efficient flow of electricity. It effectively minimizes energy dissipation and maximizes the performance of the components that are connected. This contributes significantly to enhancing the overall efficiency and reliability of the system, a factor that is of utmost importance in today's highly demanding technological landscapes.

The anti-loosening standoffs incorporated in the QE100 provide an exceptionally reliable connection. This aspect is of paramount significance in preventing any unforeseen disconnections or loosening over an extended period of time, especially in environments that are prone to vibrations or where there is frequent movement. It ensures a stable and consistent connection, thereby minimizing the risk of system malfunctions and guaranteeing smooth and uninterrupted operation.
  • product-description106u
  • The installation process of the QE100 is not only straightforward but also extremely rapid. This simplifies the assembly procedure to a great extent, saving a considerable amount of precious time and effort. Whether it is in a manufacturing setup or for enthusiasts engaged in do-it-yourself projects, the ease and speed of installation make the QE100 a highly user-friendly choice.
To sum up, the QE100 ingeniously combines its small size for seamless adaptation to confined spaces, its low contact resistance for optimal performance, its anti-loosening standoffs for reliable connections, and its effortless and swift installation process. It is a product that offers unparalleled functionality and convenience, making it the preferred choice for a wide array of applications across various domains.

peoduct-detail-ico (1)fbb
01

Industrial Field

Energy storage connectors can connect products like energy storage battery packs and clusters, flexibly achieving series and parallel connections.

peoduct-detail-ico (2)zsv
02

Grid Energy Storage System

Energy storage connectors act as a bridge, connecting the system with power conversion equipment for stable operation.

peoduct-detail-ico (3)siw
03

Solar Power Generation System

It can transfer the energy from solar panels to conversion equipment and storage devices for efficient conversion and storage.

peoduct-detail-ico (4)rjx
04

Household Energy Storage System

Energy storage connectors link battery packs and inverters to realize energy storage and conversion. These systems balance electricity supply and demand and improve efficiency.
