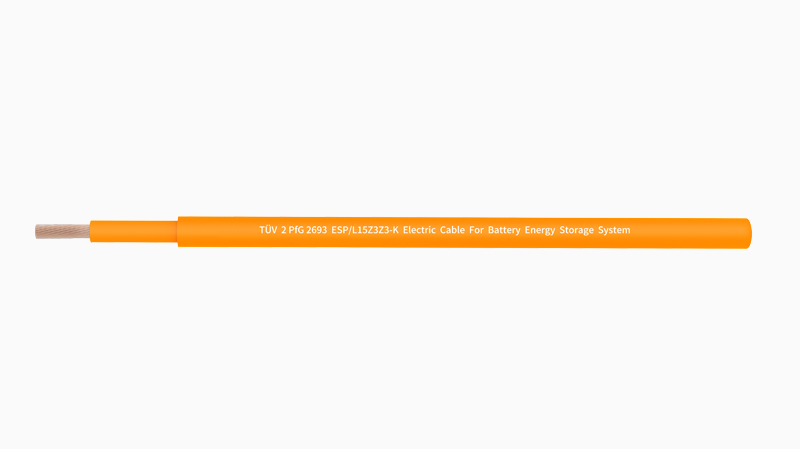

QC SOLAR ESP/L15Z3Z3-K Energy Storage System Cable

1. Flexible and easy for installation

2. Excellent flame retardancy, Meet the requirement of EN60332-1-2 for single vertical flame combustion

3. Resistance against oil, acid, alkali, water, wearing

4. Resistant to UV, meeting the requirements of2 PfG 2693/03.23Annex F

5. All materials comply with ROHS&REACH

Specification

Heat-resistant

Corrosion Resistance

Fire Resistance

custom-made

Tinned copper core

Low eccentricity

Easy installation

Complete specifications

Technical Data

Cross Section（mm²）	Conductor（No./mm）	Insulation Thickness（mm）	Jacket Thickness（mm）	Cable Diameter（mm）	Conductor Resistance at 20℃（Ω/km）	kg/km
4	133/0.2	0.8	1	7	≤5.09	83
6	190/0.2	0.8	1	7.8	≤3.39	109
10	323/0.2	1	1.1	9.5	≤1.95	171
16	513/0.2	1.1	1.1	10.6	≤1.24	238
25	798/0.2	1.3	1.2	12.3	≤0.795	344
35	1121/0.2	1.3	1.3	14.0	≤0.565	465
50	1596/0.2	1.5	1.4	15.3	≤0.393	613
70	2257/0.2	1.5	1.4	17.1	≤0.277	824
95	1887/0.254	1.5	1.5	19.3	≤0.21	1087
120	2368/0.254	1.5	1.6	21.3	≤0.164	1349
150	2960/0.254	1.7	1.7	23.4	≤0.133	1665

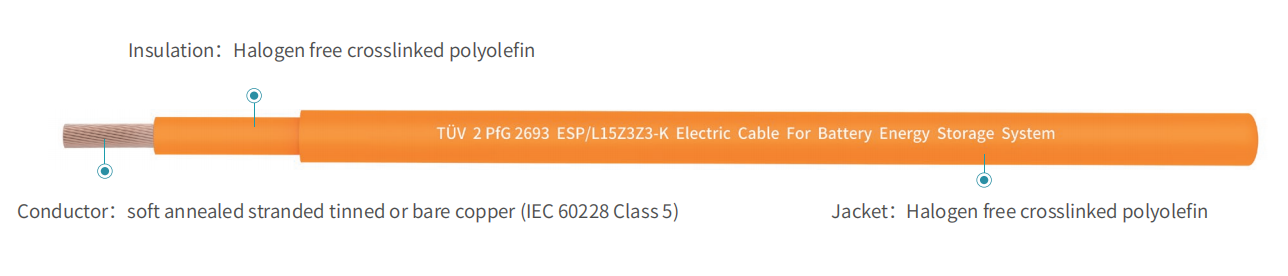

Construction Drawing

Energy Storage Cable from QC Solar：The Key to Efficient Energy Storage

The energy storage cable is a remarkable innovation that brings several outstanding features to the table, making it an essential component in the field of energy storage.

One of the notable characteristics of the energy storage cable is its flexibility. With a 4D bending radius, it offers great ease during the installation process. This flexibility allows for seamless integration into various energy storage systems, regardless of the complex layouts or confined spaces. It simplifies the setup and reduces the time and effort required for installation, ensuring a smooth and efficient operation from the start.

The cable's excellent flammability resistance, reaching up to level VW-1, is a crucial safety feature. In energy storage applications where the potential for heat and electrical risks exists, this high level of fire resistance provides an added layer of protection, reducing the likelihood of fire-related incidents and enhancing the overall safety of the system.

Resistance against oil, acid, alkali, water, wear, and cracking, along with UL compliance, showcases the durability and reliability of the energy storage cable. It can withstand harsh environmental conditions and chemical exposures, ensuring consistent performance over an extended period. This resistance not only prolongs the cable's lifespan but also reduces the need for frequent replacements and maintenance, resulting in cost savings and increased operational efficiency.

Furthermore, the fact that all materials used in the energy storage cable comply with ROHS and REACH standards is a testament to its commitment to environmental responsibility and safety. It ensures that the cable is free from harmful substances, contributing to a greener and more sustainable energy storage solution.

In conclusion, the energy storage cable stands out with its flexibility, fire resistance, durability, and compliance with strict standards. It is a reliable and efficient choice for energy storage systems, providing a solid foundation for the smooth and safe operation of these critical setups. Whether in large-scale industrial applications or smaller-scale energy storage setups, this cable proves to be an indispensable component, driving the advancement of energy storage technology towards a more efficient and sustainable future.
