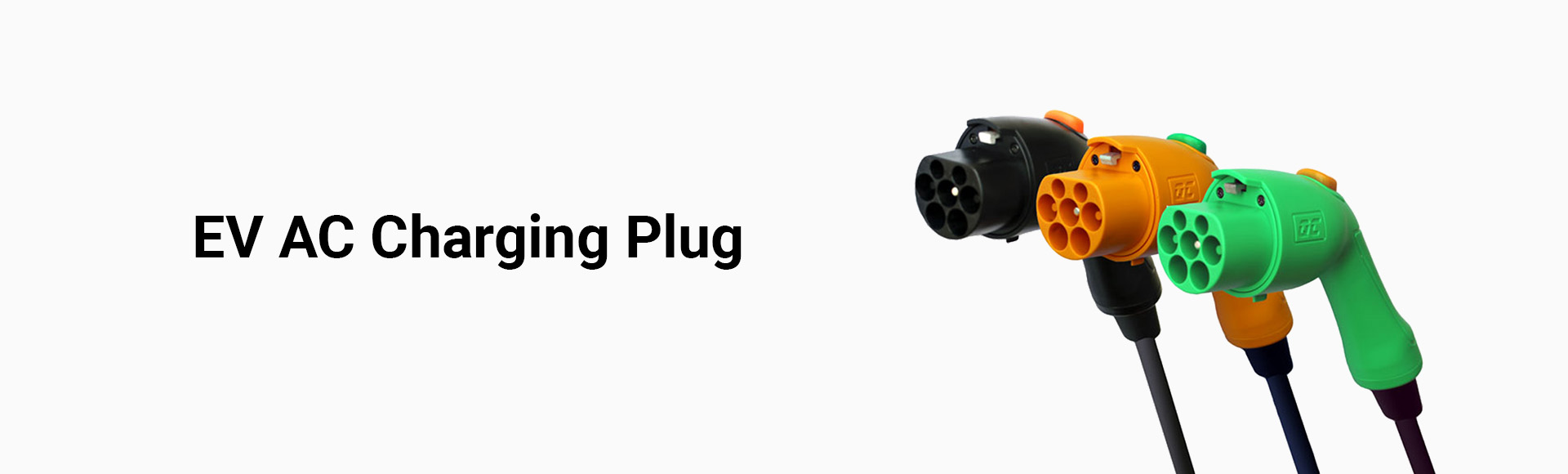

EV AC Charging Pluge72

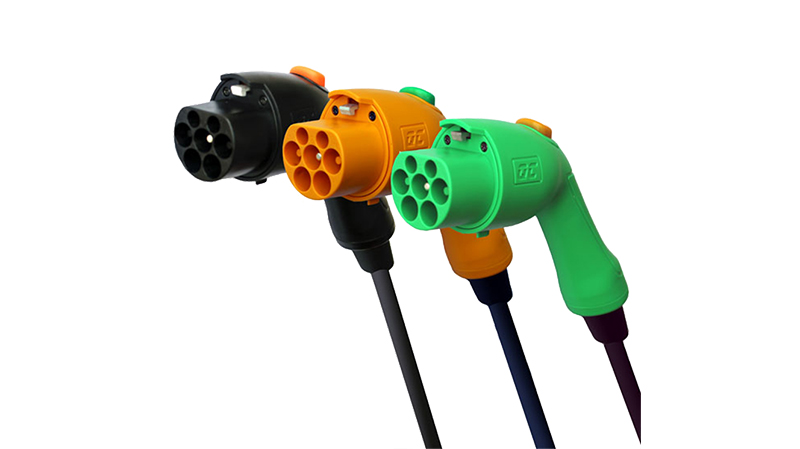

EV-AC-Charging-Plugujq

QC Solar EV AC Charging Plug

1. According to《Electric Vehicle Conductive Charging Inlet and Plugs》GB/T-20234-2015 standard
2. Handheld ergonomic design, easy Plug
3. Safety pin head using insulation designed to prevent accidental direct contact with staff

Fire performance

environmental protection

abrasion resistance

weatherability

oil resistant

UV resistant

One-piece

low heat

Technical Data

Product Name Electric Vehicle Plugs
Standard GB/T 20234:2015
Mechanical Characteristics
Mating cycles ≥10000
Insertion force <100N
Anti-insertion force >300N
Working Environment
Temperature Range -40℃-60℃
Flammability Class UL94 VO
Protection Degree IP55
Material
Housing Insulation plastic
Pin Copper core+Silver plated
Electrical application
Rated Current 16A/32A/63A
Rated Voltage 250V/380V
Product Model
16A 3*2.5m㎡+2*0.75m㎡
32A 3*6.0m㎡+2*0.75m㎡
63A 3*10m㎡+2*0.75m㎡

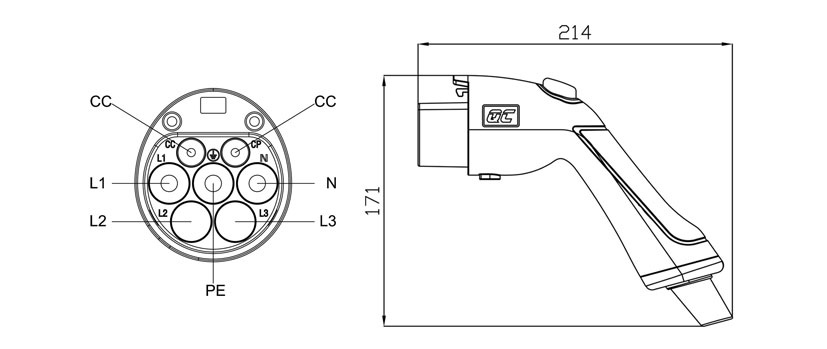

Dimensions(mm)

Dimensions(mm)r57
Electric Vehicle Plugs: Revolutionizing the Future of Mobility

In the pursuit of sustainable transportation, electric vehicles have emerged as a game-changer. At the heart of this technological advancement lies the Electric Vehicle Plug, compliant with the GB/T-20234-2015 standard.

Designed with meticulous attention to detail, these plugs adhere to the strict requirements of the 《Electric Vehicle Conductive Charging Inlet and Plugs》GB/T-20234-2015 standard. The handheld ergonomic design ensures a seamless and effortless plugging experience. It is engineered to fit comfortably in your hand, making the charging process not only efficient but also user-friendly.

Safety is of paramount importance, and these plugs leave no stone unturned. The safety pin head is ingeniously designed with insulation to prevent any accidental direct contact with staff, providing an added layer of protection. With superior protective properties and a protection class of IP55, they are well-equipped to withstand various environmental challenges.

The one-piece construction, combined with a soft touch, not only offers a pleasant tactile experience but also ensures low heat generation. This feature is crucial for prolonged usage and reliable performance. The materials used are of exceptional quality, specially selected for their excellent outdoor capabilities. They boast fire performance, environmental friendliness, abrasion resistance, weatherability, oil resistance, and UV resistance.

Whether it's scorching summers or freezing winters, these plugs are built to last. Their durability ensures that you can charge your electric vehicle without any concerns about the elements or wear and tear. The combination of safety, functionality, and durability makes these Electric Vehicle Plugs a true asset in the evolving landscape of electric mobility.

Embrace the future of transportation with confidence, knowing that your vehicle is powered by a plug that meets the highest standards of quality and performance.
