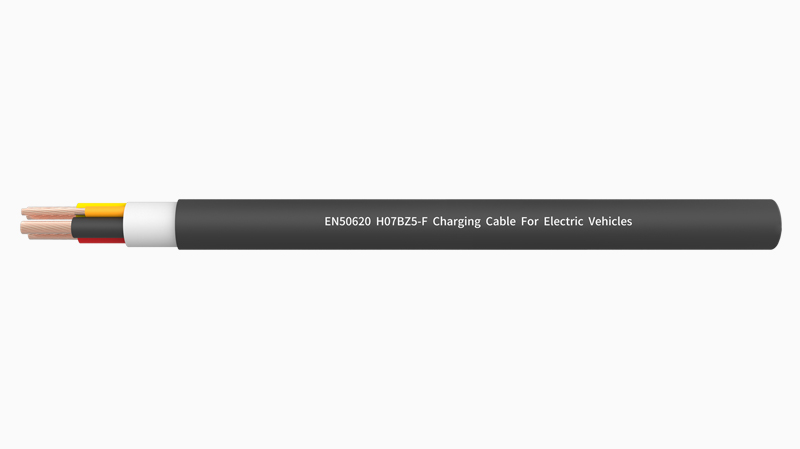

QC Solar H07BZ5-F Charging Cable

1. Easy installation with a minimum bending radius of (Static)6xOD
2. Resistant to high/low temperatures, oil, acids, alkalis, and water
3. Resistance against cracking, UV
4. Shielded design reduces electromagnetic interference (EMl)
5. All materials comply with RoHS 2.0 environmental standards

High temperature resistance

Corrosion Resistance

Fire Resistance

Complete specifications

Technical Data

Style of the cable(mm²) Rated Current
(mm)
Insulation Thickness
(mm)
Jacket
Thickness(mm)
Diameter(mm) Conductor Resistance at 20℃
(Ω/km)
(kg/km)
3x1.5mm2+(0~10)x(0.5~1.0) 10 0.7 1 9.2~11.8 ≤ 13.3 182~242
3x2.5mm2+(0~10)x(0.5~1.0) 16 0.7 1 10.1~13.2 ≤ 7.98 173~252
3x4mm2+(0~10)x(0.5~1.0) 20 0.7 1.1 12.1~15.5 ≤ 4.95 251~354
3x6mm2+(0~10)x(0.5~1.0) 32 0.7 1.2 13.7~17.5 ≤ 3.3 342~472
3x10mm2+(0~10)x(0.5~1.0) 40 0.7 1.4 16.3~20.8 ≤ 1.91 537~720
5x2.5mm2+(0~10)x(0.5~1.0) 16 0.7 1.2 12.9~16.5 ≤ 7.98 286~403
5x4mm2+(0~10)x(0.5~1.0) 20 0.7 1.3 14.9~19.1 ≤ 4.95 398~555
5x6mm2+(0~10)x(0.5~1.0) 32 0.7 1.4 16.9~21.7 ≤ 3.3 545~748
5x10mm2+(0~10)x(0.5~1.0) 40 0.7 1.5 20.3~25.9 ≤ 1.91 870~1154
5x16mm2+(0~10)x(0.5~1.0) 63 0.7 1.7 24.2~31.0 ≤ 1.21 1326~1738
5x25mm2+(0~10)x(0.5~1.0) 80 0.9 2.0 30.2~38.7 ≤ 0.78 2063~2707
5x35mm2+(0~10)x(0.5~1.0) 125 0.9 2.3 35.6~45.5 ≤ 0.554 2887~3769

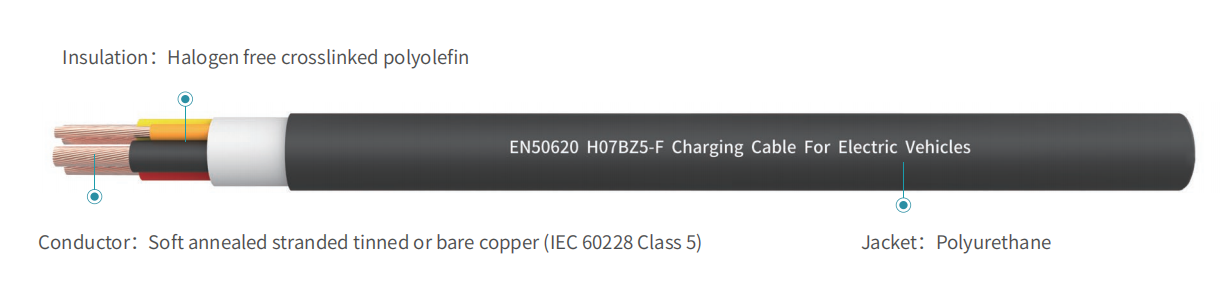

Construction Drawing

微信图片_20250829114256
With the increasing popularity of electric vehicles, the development of charging infrastructure has become increasingly important. The charging cable serves as an essential component of the electric vehicle charging system, playing a critical role in facilitating efficient and safe power transmission between the charging equipment and the vehicle's charging port.

This charging cable is specifically designed to connect electric vehicle charging equipment and charging ports, ensuring that electrical energy is transmitted safely and efficiently. Equipped with advanced charging saturation monitoring capabilities, it can continuously monitor the charging status, preventing overcharging and protecting the battery’s lifespan. Additionally, the safety alert function provides an extra layer of assurance during the charging process. In the event of any anomalies, the system promptly issues alerts, effectively reducing potential safety risks.

To cater to diverse user needs, our charging cable is designed with durability and flexibility in mind. Manufactured from high-quality materials, it is capable of performing reliably in various environments. Moreover, the lightweight design enhances portability and ease of use, improving the overall user experience.

The performance of the charging cable directly impacts charging efficiency and safety. Therefore, our products undergo rigorous testing and quality control to ensure that each cable can operate reliably under high loads. Whether at home, at public charging stations, or on long journeys, you can depend on this charging cable to deliver fast and safe charging for your electric vehicle.

In summary, this charging cable not only enhances charging efficiency but also provides a safe and reliable charging experience for users. It is an indispensable component of modern electric vehicle charging systems. By choosing our product, you will bring a new level of experience and assurance to your electric vehicle charging.
