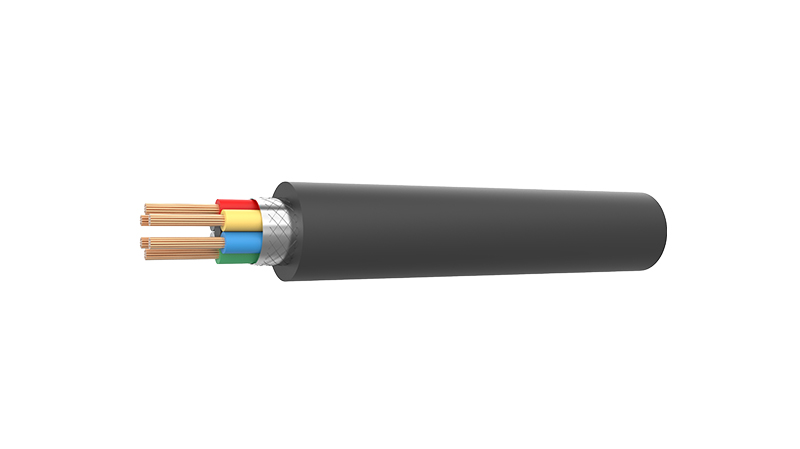

High Flexible Shield Robot Cable

Suitable for installation under continuous reciprocating motion, especially frequent bending scenarios in industrial environments—such as drag chains of modern mechanical standard components, logistics systems, control systems, mechanical automation systems, and shielded indoor/outdoor areas in CNC machine tools, electronic equipment, hardware stamping, wood/stone machinery, glass/door & window machinery, injection molding machines, robotic arms, construction machinery, heavy machinery plants, automobile manufacturing, lifting/transport equipment, automated warehouses, docks, fire engines, etc.

High Flexibility

High-Speed

Oil & Grime Resistant

Aging Resistance

Low-Temperature Resistant

Wear-Resistant

Flex-Resistant

Impact Resistance

Technical Data

Product Mix

conductor		Multi strand ultra-fine precision twisted oxygen free copper wire, compliant with CDE0295 CLASS 6
isolation	Insulation material	Special mixed PVC insulation
	Color Code	<0.5mm ² Color representation, brown, black, blue, purple, pink, orange ≥ 0.5mm ² black numerical white number, 3-core or above with blue-green grounding wire (yellow green optional)
Core wire structure		Layered or grouped gap filling
Strap and weaving		Polyester tape or non-woven fabric, tin plated copper weaving (>80%)
sheath	sheathing material	Specially modified PVC sheath
	Sheath color	Black, gray, orange

Technical Parameter

rated voltage	S<0.5mm2:300/300V S>0.5mm2:300/500V
testing voltage	2000V
minimum bend radius Fixed laying Mobile laying	6xD When the travel distance is less than 10 meters, the bending radius is 10xD When the travel distance is ≥ 10 meters, the bending radius is 12xD
Temperature Fixed laying Mobile laying	—40℃~+90℃ —30℃~+90℃
Flame retardancy	Compliant with IEC60332-1-2+EN60332-1-2

Structure Size

Cores or Section	ExtermalDiameter mm	Wetght kg/km
0.14*（2~38）C	4.7~14.0	27~259
0.25*（2~38）C	4.97~14.7	31~312
0.5*（2~38）C	5.8~18.7	44~513
0.75*（2~38）C	6.4~20.8	54~662
1.5*（2~38）C	8.2~28.6	89~1192
2.5*（2~33）C	10.4~31.3	138~1743
