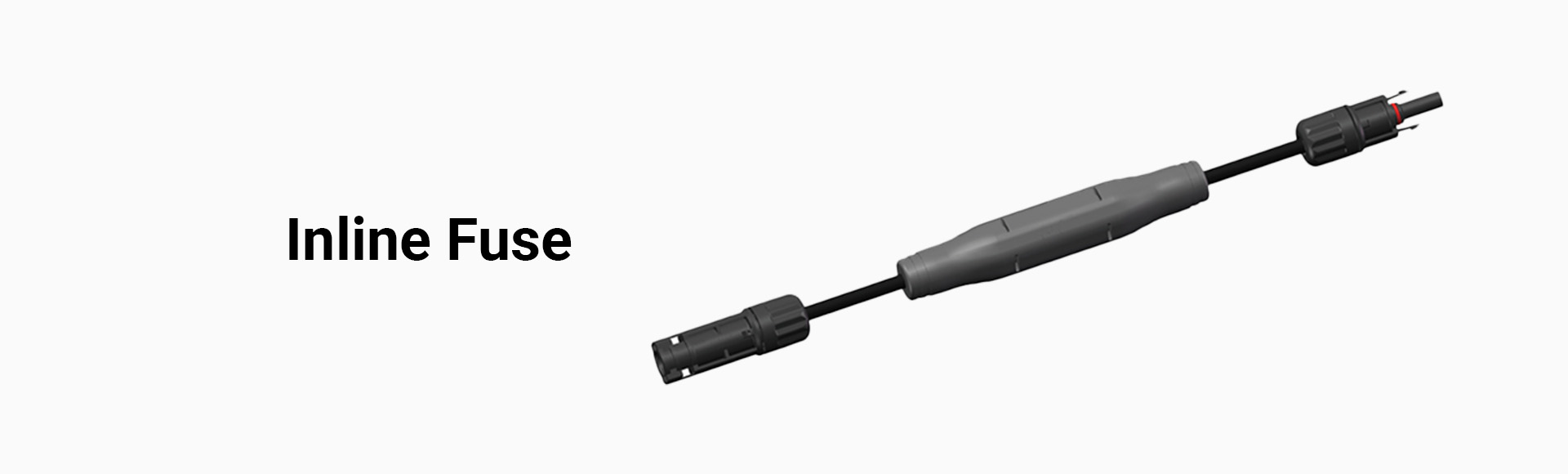

QC Solar Inline Fuse

The rubber-coated fuse connectors from QC Solar feature a built-in mechanism that instantly trips the fuse during current spikes, safeguarding solar module, inverter and the system from overload & short circuits.

Brochure Specification

Special PV Cable

Waterproof grade up to IP68

Easy installation

custom-made

Technical Data

Product type	Fuse rating	Connector type	Cable size	Cable length
QC-F	A:UP to 30A(1000V)	C:QC4.10-1000V	J:12AWG	L1=100mm
	B:UP to 50A(1500V)	D:QC4.10-1500V	K:10AWG	L2=customized
		E:QC4.10-PLUS	M:8AWG
		F:TS4
		G:TS4-PLUS
		H:MC4
		I:MC4-EVO2
		N:NONE

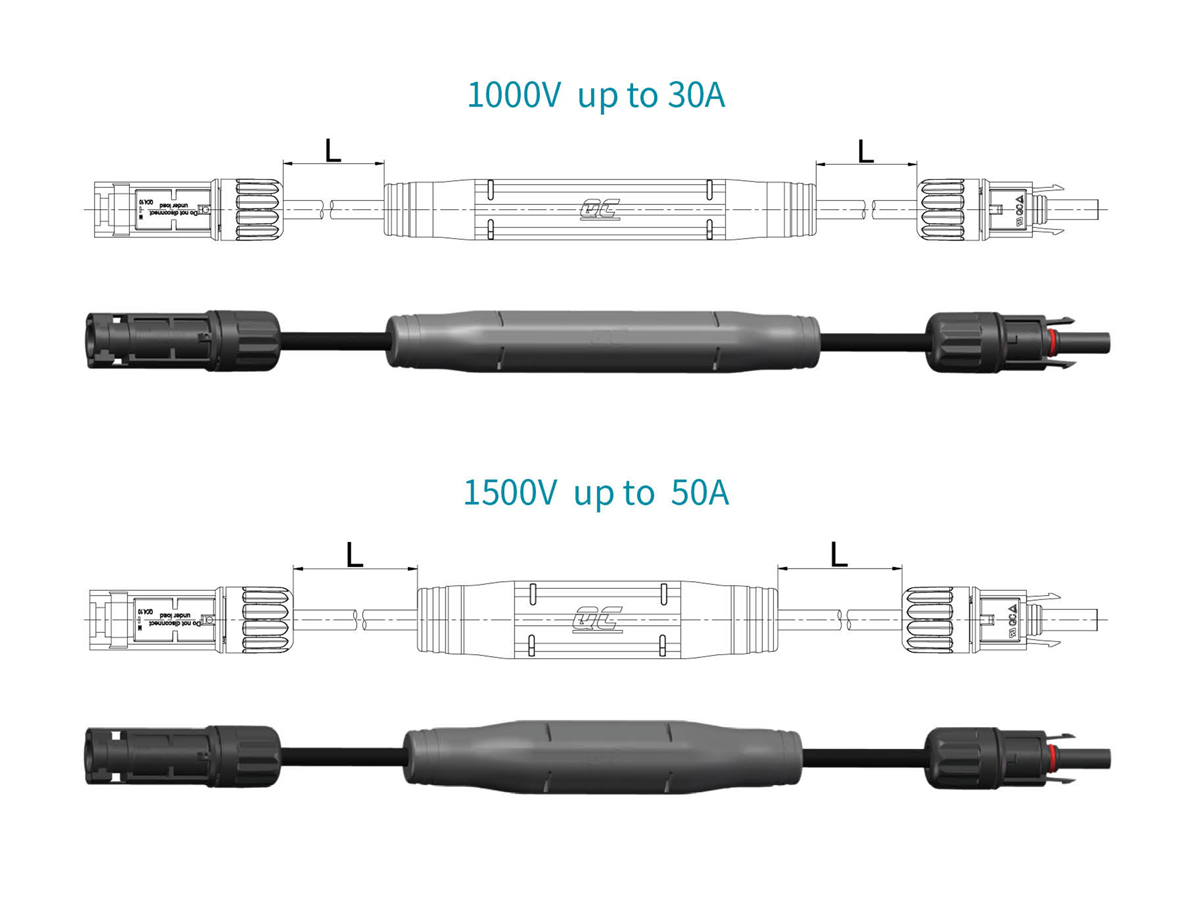

Dimensions(mm)

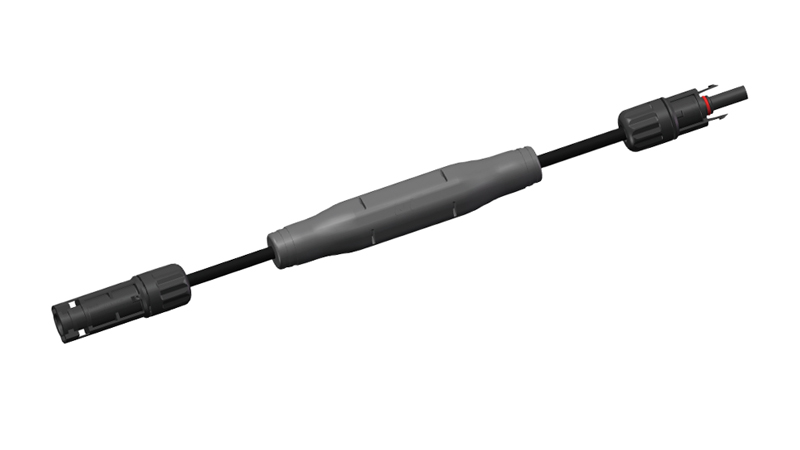

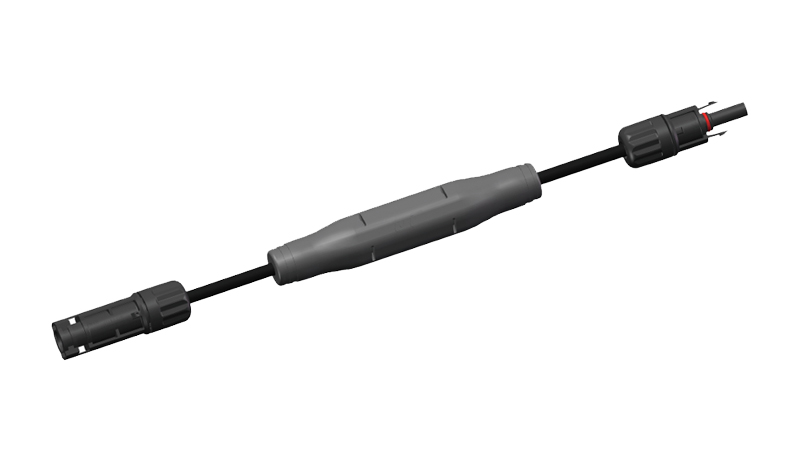

Inline Fuse from QC Solar

As the core guardian of modern solar systems, the over-molded fuse connectors from QC Solar, have demonstrated extraordinary strength in safeguarding circuit safety and enhancing system stability, with its exquisite design concepts and excellent performance.

Crafted with meticulous care from high-quality insulating materials and robust metal components, these connectors form a formidable barrier against extreme temperature fluctuations, high humidity, and harsh environmental conditions, ensuring consistent, stable, and reliable performance throughout the long-term operation of solar energy systems.

At its heart lies the built-in fuse mechanism, akin to an astute guardian, that swiftly responds to sudden surges in current, precisely triggering a fuse blowout to sever potentially hazardous circuits. This instantaneous protection strategy significantly mitigates system failure risks, drastically reducing maintenance costs and unnecessary downtime.

In terms of installation, QC Solar's rubber-coated fuse connectors also excel in convenience. User-friendliness is paramount in their design, allowing for effortless installation without the need for complex tools or specialized skills. This significantly boosts installation efficiency, paving a smooth path for the rapid deployment of solar energy systems.

Furthermore, these connectors boast remarkable compatibility, seamlessly interfacing with a wide range of solar equipment, from small-scale household systems to large-scale commercial power plants. They offer comprehensive and efficient protection, ensuring a seamless fit and optimal performance in all applications.

Coupled with its unique rubber-coated design, the connectors effectively shield against external moisture and dust intrusion, while significantly enhancing their resistance to vibration and impact, thereby extending their service life. Additionally, their excellent sealing and waterproof properties guarantee stable operation even in damp or submerged environments, providing a solid foundation for the round-the-clock functioning of photovoltaic systems.

In conclusion, QC Solar's rubber-coated fuse connectors have garnered widespread acclaim and adoption in the photovoltaic industry for their superior protective capabilities, durability, straightforward installation process, and broad compatibility. Choosing them adds an impenetrable layer of security to your solar investment, smoothing the path for unhindered utilization of clean energy and collectively driving the vibrant growth of green energy initiatives.
