QC Solar M12 Connector

The M12 connector has emerged as a vital component in the realm of modern technology, offering a wide range of capabilities and advantages that make it indispensable in numerous applications.

Easy to install

Protection grade up to IP68

Customization available

Technical Data

Number of contact	3	4	5	7	8
Part Number	M12-3		M12-4	M12-7	M12-8
Rated current(A)	5A	5A	5A	2A	2A
Rated voltage	250V	250V	250V	125V	125V
Test voltage(AC.V) 1 min	1000V
Contact resistance	5mΩ
Pin Diameter	3*1.0	5*1	4*1.0	0 7*0.7	8*0.7
Wire Size mm'/AWG	≤0.785/18

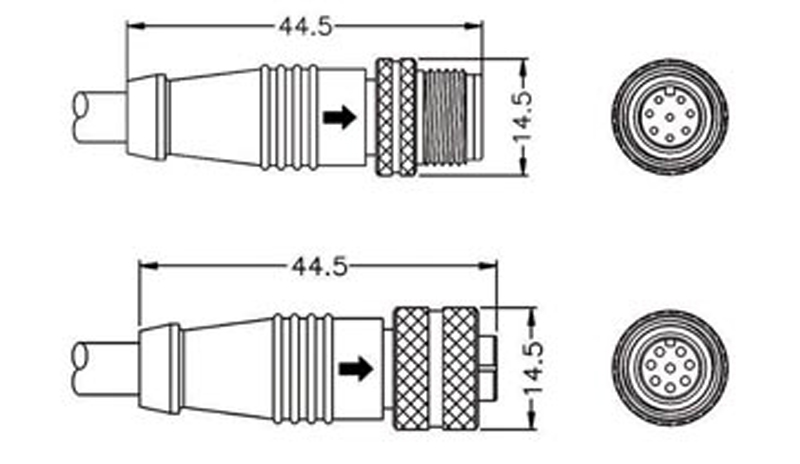

Dimensions(mm)

M12 connectors: a versatile link in modern technology

M12 connectors have become a key component in modern technology, offering a wide range of features and benefits that make them indispensable in many applications.

The M12 connector is renowned for its exceptional durability. It has been carefully designed to withstand the harshest conditions and is suitable for industrial environments where dust, humidity, chemicals and mechanical stress are common. Its robust construction ensures a reliable connection, minimizing the risk of failure and downtime, which is essential in critical operations.

A key benefit of the M12 connector is its wide range of available pin configurations. This enables it to handle a wide range of signal types and quantities, including power, data and control signals. Whether it's transmitting high-speed digital data in a communications system or providing a stable power source for industrial machinery, M12 connectors can be customized to meet the specific needs of the application.

M12 connectors also have excellent sealing properties. This feature makes them highly resistant to water and dust ingress, making them ideal for outdoor and harsh environment applications such as in automotive, aerospace and outdoor surveillance systems. Reliable sealing helps protect the integrity of the connection and ensures consistent performance even under unfavorable conditions.

Another advantage of the M12 connector is its quick and easy installation process. It is designed for easy pairing and separation, facilitating efficient assembly and maintenance. This not only saves time, but also reduces the likelihood of errors during installation, contributing to the overall reliability of the system.

In addition, the M12 connector is compatible with a wide range of cable types and materials, providing flexibility in system design. This enables engineers to select the most suitable cable based on factors such as flexibility, temperature resistance and shielding requirements, further optimizing the performance of the connected system.

Furthermore, M12 connectors play a key role in ensuring electromagnetic compatibility (EMC). Their design helps to minimize Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), ensuring the smooth operation of sensitive electronic equipment and systems.

Overall, the M12 connector is a highly versatile and reliable component that plays a key role in connecting and powering modern technology. Their durability, configurability, sealing capabilities, ease of installation and compatibility make them an essential choice for a wide range of applications, contributing to the seamless operation and performance of complex systems in a variety of industries.
