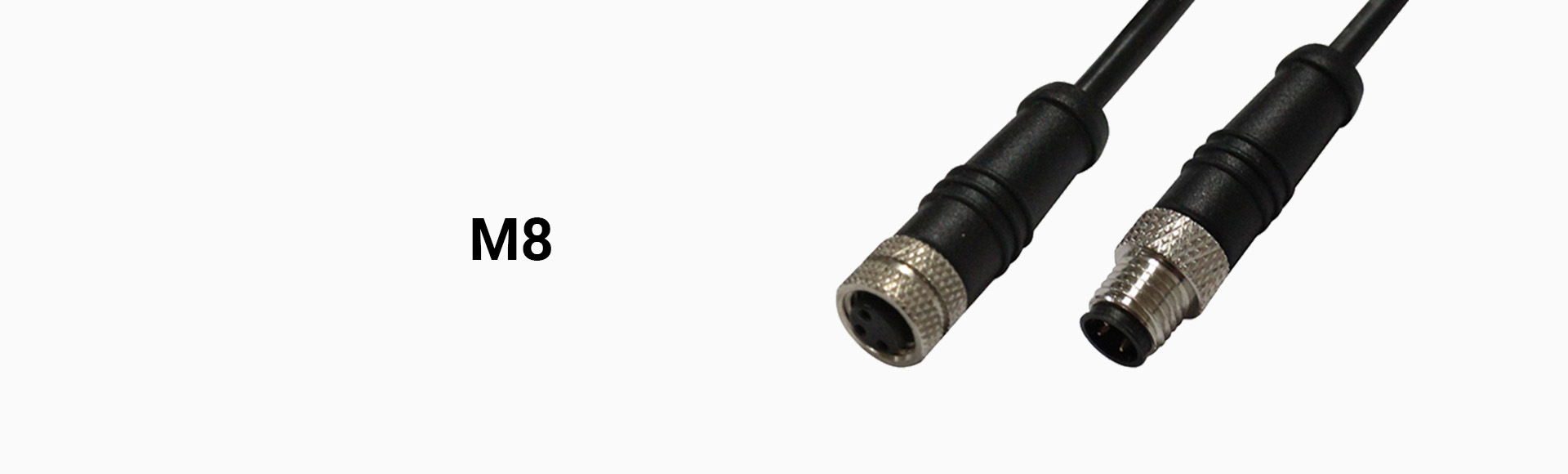

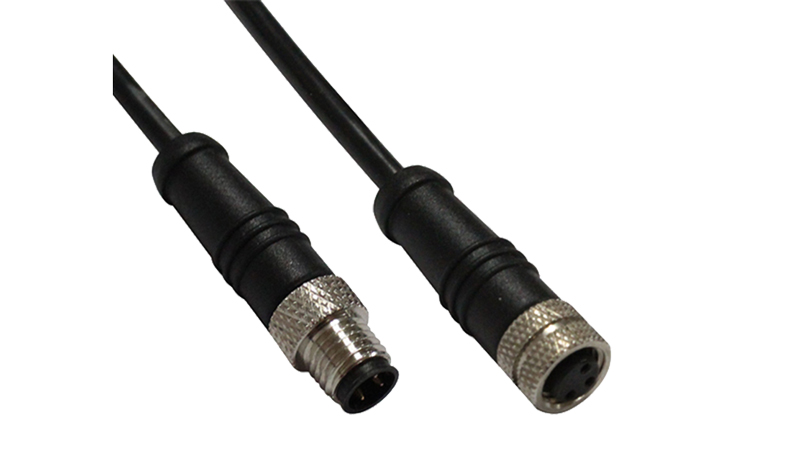

QC Solar M8 Connector

The M8 connector is a small but highly significant component that plays a crucial role in various applications, often going unnoticed yet having a profound impact on the functionality and reliability of systems.

Easy to install

Protection grade up to IP68

Customization available

Technical Data

Number of contact	3	4
Part Number	M8-3	M8-3 M8-4
Rated current(A)	5A	3A
Rated voltage	250V
Test voltage(AC.V) 1 min	1000V
Contact resistance	5mΩ
Pin Diameter	3*1.0	4*1.0
Wire Size m㎡/AWG	≤0.785/18

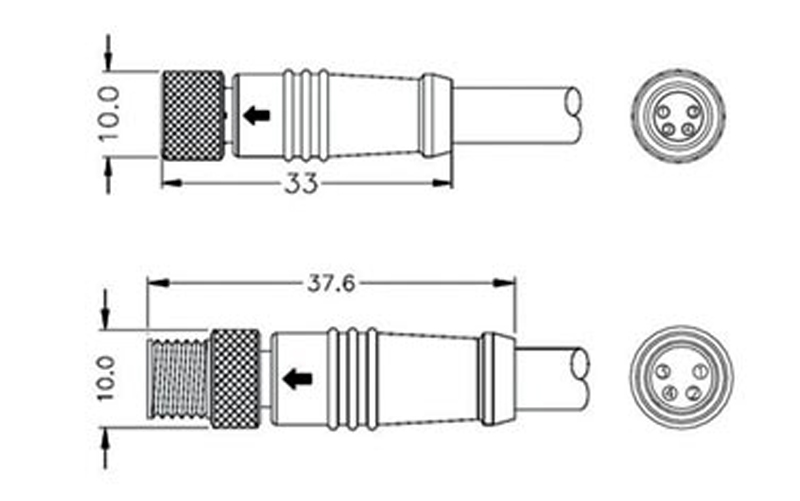

Dimensions(mm)

M8 Connector

One of the key features of the M8 connector is its compact size. Despite its diminutive form, it packs a punch in terms of performance. Its small footprint makes it ideal for applications where space is at a premium, such as in tight electronic enclosures or in devices with limited installation areas.

The M8 connector is known for its robust construction. It is engineered to withstand harsh environments, including vibrations, moisture, and temperature variations. This durability ensures a long service life and reliable connection, even in challenging conditions. Whether in industrial machinery, automotive systems, or outdoor equipment, the M8 connector holds up against the rigors of daily use.

In terms of connection reliability, the M8 connector excels. It provides a secure and stable connection, minimizing the risk of signal loss or interruption. This is essential in applications where consistent and accurate data transmission or power supply is critical, such as in control systems or sensor networks.

The M8 connector also offers flexibility in terms of the types of signals it can handle. It can be used for transmitting power, data, or both, depending on the specific requirements of the application. This versatility makes it a go-to choice for a wide range of industries and devices.

Installation and maintenance of the M8 connector are relatively straightforward. Its design allows easy mating and unmating, simplifying the process of component replacement or system upgrades. This ease of use contributes to reduced downtime and increased productivity in the systems it is incorporated into.

Furthermore, the M8 connector is compatible with a variety of mating interfaces, allowing for seamless integration into existing systems or the creation of new ones. This compatibility enhances its usability and broadens its application scope.

In conclusion, the M8 connector may be small in size, but it is a mighty force in the world of connectivity. Its combination of compactness, durability, reliability, flexibility, and ease of use makes it an indispensable component in numerous applications, quietly ensuring the seamless operation of various systems and devices.
