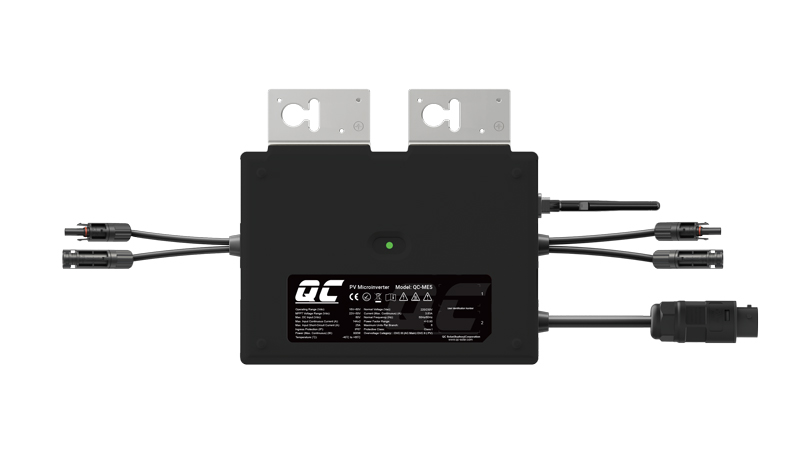

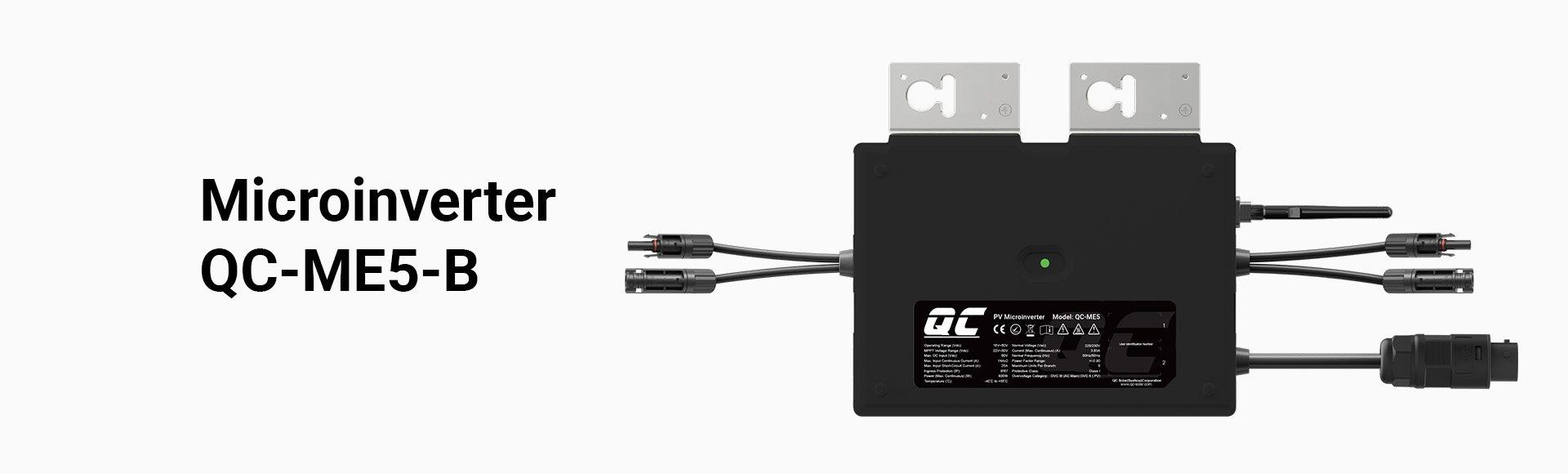

QC Solar QC-ME5-B

In the dynamic world of power technology, the QC-ME5-B emerges as a shining star, offering unparalleled performance and efficiency. This remarkable device is not just another addition to the market; it is a game-changer that redefines the standards of power conversion.

Installation Instructions Specification

Safe

Quality

Monitoring

Flexibility

Plug & Play

15 Years

Module-Level

Technical Data

ITEM	QC-ME5-B
Input(DC)
Input Power Range(W)	(180W～550W+)*2
Max input Voltag(V)	60V
Max Input Current(A)	14A*2
Max Isc(A)	25 A
Operating Voltage Range(V)	16V-60V
Output(AC)
Rated Voltage(V)	220V/230V
Output Voltage Range(V)	189V-260V
Max Output Current(A)	3.63A
Frequency(Hz)	50Hz/60Hz
Max Output Power(W)	800W
Others
MPPT Efficiency	99.9%
Ingress Protection(IP)	IP 67
Temperature range(℃)	-40℃ ~ +65℃
Dimensions(WHD)	264mm194mm35.5mm

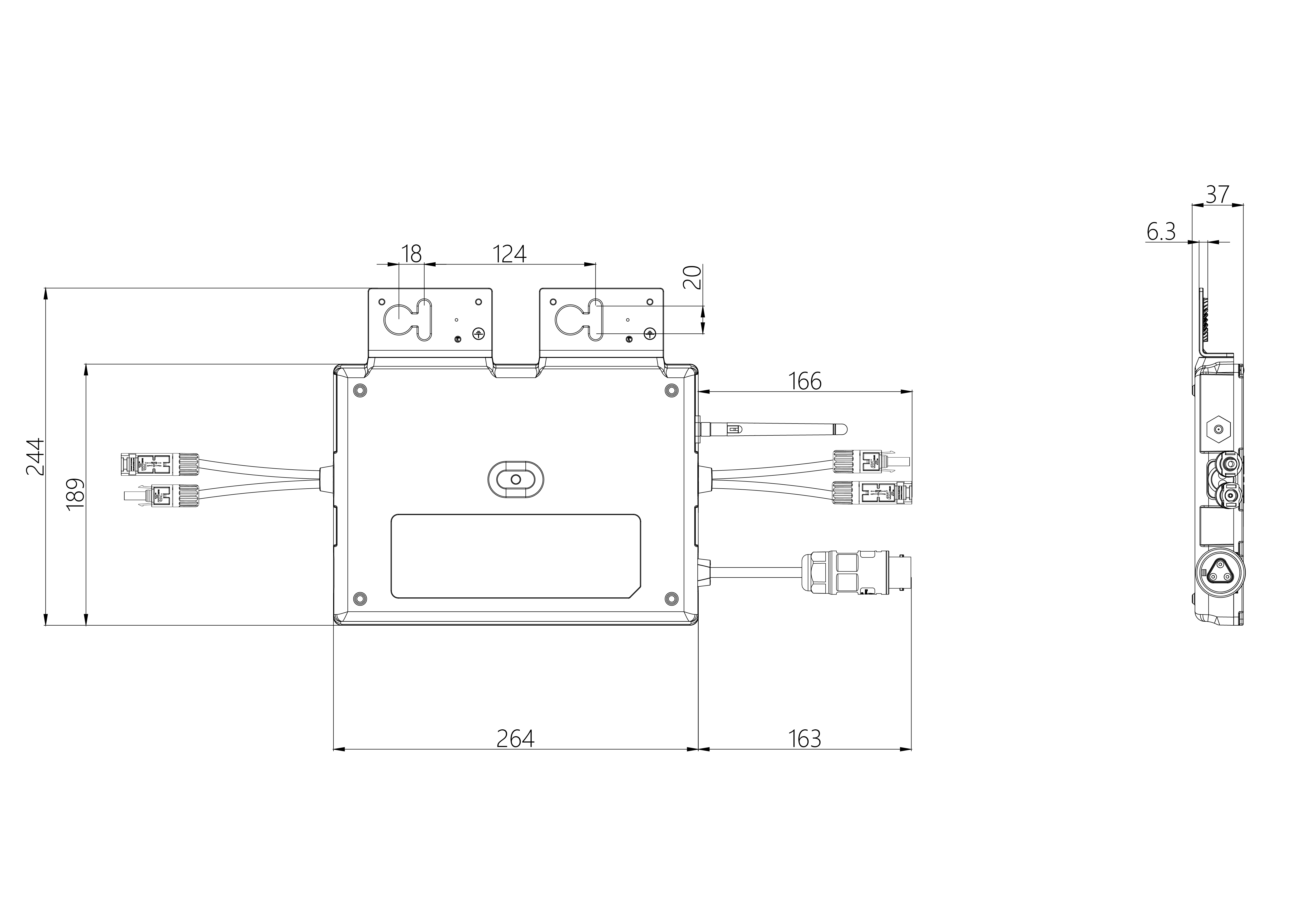

Dimensions(mm)

The QC-ME5-B: Unleashing Power with Precision and Innovation

The QC-ME5-B is engineered with the latest advancements in technology to ensure seamless and precise power transformation. Its intelligent design allows for smooth operation, minimizing power fluctuations and providing a stable output that is crucial for various applications.

One of the key features of the QC-ME5-B is its high conversion efficiency. This means that less energy is wasted during the process, resulting in significant cost savings and a reduced environmental footprint. Whether it's powering industrial machinery, solar power systems, or critical infrastructure, this inverter maximizes the utilization of available power.

The QC-ME5-B also boasts exceptional durability and reliability. Built to withstand harsh operating conditions, it offers long-term performance without frequent breakdowns or maintenance issues. This reliability is essential in applications where uninterrupted power supply is non-negotiable.

Furthermore, the compact and sleek design makes it easy to install and integrate into different. It doesn't take up much space and can fit seamlessly into various environment, providing a hassle-free installation process.

In terms of safety, the QC-ME5-B incorporates multiple protective measures to safeguard against overvoltage, overcurrent, and short circuits. This ensures the safety of both the equipment connected to it and the users operating the system.

The QC-ME5-B is not only a technological marvel but also a symbol of progress and innovation. It empowers businesses and individuals to optimize their power usage, increase productivity, and contribute to a more sustainable future.

In conclusion, the QC-ME5-B is a state-of-the-art solution that combines efficiency, reliability, safety, and ease of use. It is a reliable partner in the quest for efficient power management, opening up new horizons in the field of power technology.

Residential sector

It is able to flexibly adapt to the PV power generation needs of different households, such as balcony PV, which is suitable for a variety of roof types, and improves the overall system power generation efficiency through the Maximum Power Point Tracking (MPPT) function.

Industrial field

Micro inverters can effectively manage the power generation of large-scale PV modules, support remote monitoring and data analysis, and help companies track system performance in real time for maintenance and optimization.

Rural power supply

In remote rural areas, micro inverters can utilize solar energy and convert it into electricity, thus providing a stable power supply in rural areas.
