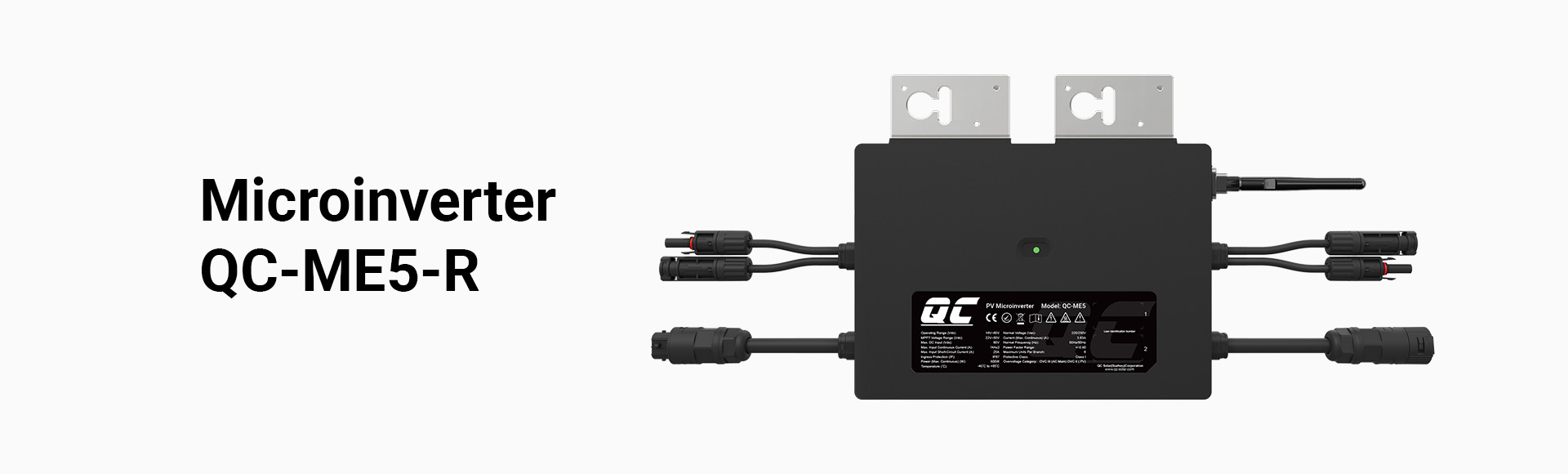

QC Solar QC-ME5-R

In the of modern power solutions, the QC-ME5-R stands as a beacon of innovation and reliability. This advanced device is not just a piece of; it's a revolutionary that is shaping the future of power control and distribution.

Installation Instructions Specification

Safe

Quality

Monitoring

Flexibility

Plug & Play

15 Years

Module-Level

Technical Data

ITEM	QC-ME5-R
Input(DC)
Input Power Range(W)	(180W～550W+)*2
Max input Voltag(V)	60V
Max Input Current(A)	14A*2
Max Isc(A)	25 A
Operating Voltage Range(V)	16V-60V
Output(AC)
Rated Voltage(V)	220V/230V
Output Voltage Range(V)	189V-260V
Max Output Current(A)	3.63A
Frequency(Hz)	50Hz/60Hz
Max Output Power(W)	800W
Others
MPPT Efficiency	99.9%
Ingress Protection(IP)	IP 67
Temperature range(℃)	-40℃ ~ +65℃
Dimensions(WHD)	264mm194mm35.5mm

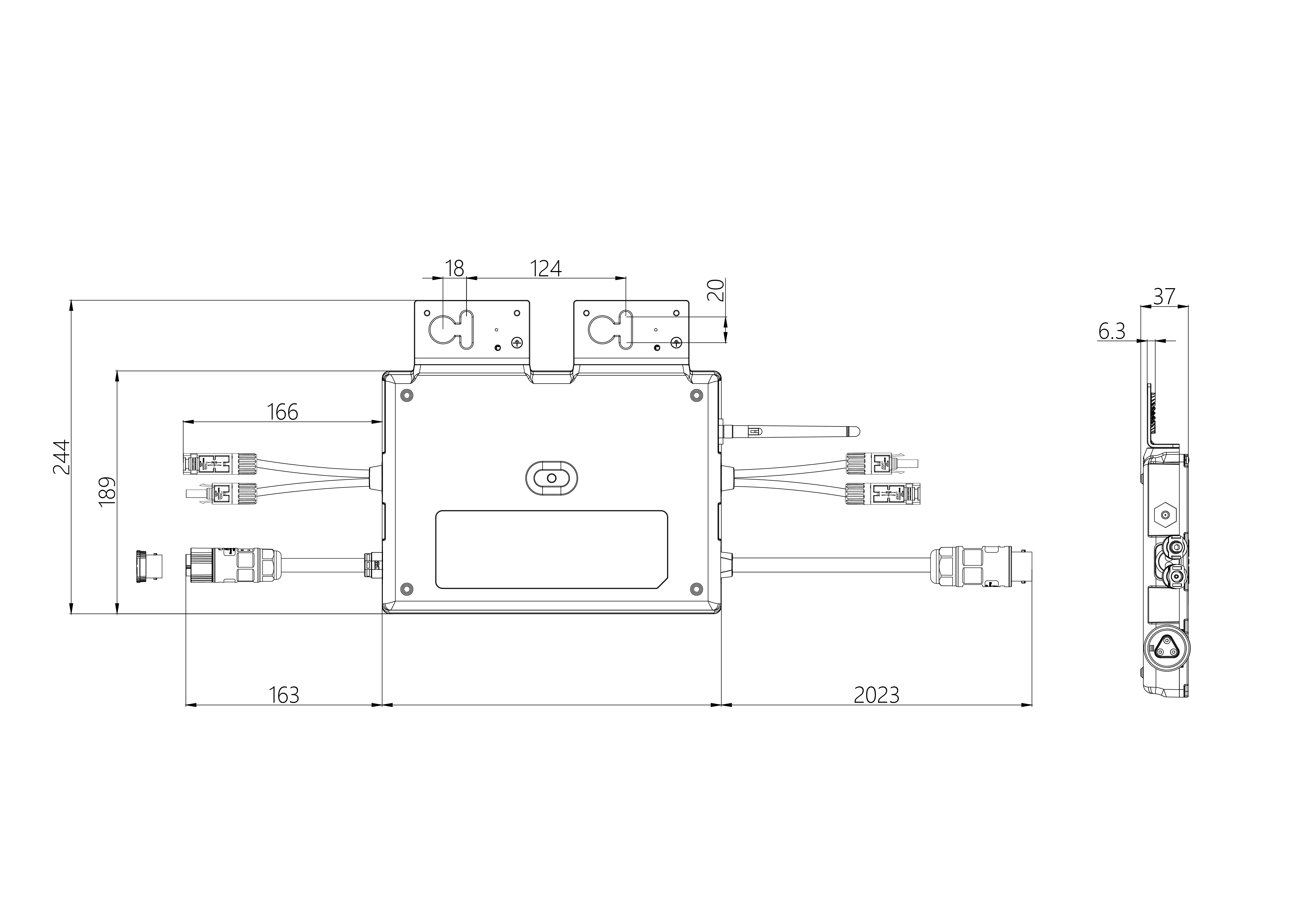

Dimensions(mm)

The QC-ME5-R: Transforming Power Management

The QC-ME5-R is a testament to technological excellence. It is engineered with precision and attention to detail to ensure seamless power conversion. Its ability to transform electrical energy from one form to another with minimal loss and maximum efficiency is truly remarkable.

One of the standout features of the QC-ME5-R is its adaptability. It can effortlessly handle a wide range of power sources and loads, making it suitable for diverse applications. Whether it's powering critical infrastructure in remote locations or supporting advanced industrial, this rises to the challenge.

The performance of the QC-ME5-R is nothing short of impressive. It offers stable and consistent power output, reducing the risk of equipment damage and ensuring smooth operations. This stability is crucial in industries where even the slightest power disruption can have significant consequences.

In addition to its technical capabilities, the QC-ME5-R is designed with user convenience in mind. It comes with intuitive controls and monitoring systems that allow for easy configuration and real-time performance tracking. This simplifies the management of power systems and enables quick troubleshooting when needed.

Safety is another aspect where the QC-ME5-R excels. It is equipped with comprehensive protection mechanisms to safeguard against electrical faults, overheating, and other potential hazards. This provides peace of mind to users, knowing that their equipment and operations are protected.

The QC-ME5-R also contributes to energy conservation. By optimizing power usage and reducing waste, it aligns with the global push for sustainable and eco-friendly practices.

In summary, the QC-ME5-R is a cutting-edge solution that combines advanced technology, adaptability, performance, safety, and user-friendliness. It is a powerful asset for those seeking efficient and reliable power management, making it an indispensable in the evolving landscape of power systems.

Residential sector

It is able to flexibly adapt to the PV power generation needs of different households, such as balcony PV, which is suitable for a variety of roof types, and improves the overall system power generation efficiency through the Maximum Power Point Tracking (MPPT) function.

Industrial field

Microinverters can effectively manage the power generation of large-scale PV modules, support remote monitoring and data analysis, and help companies track system performance in real time for maintenance and optimisation.

Rural power supply

In remote rural areas, microinverters can utilise solar energy and convert it into electricity, thus providing a stable power supply in rural areas.
