5 Key Factors to Evaluate Before Buying a PV Module Junction Box

Ensure your solar investment pays off. This guide covers important factors such as IP rating, thermal management, and safety certifications to help you make a reliable pv module Junction Box purchasing decision.

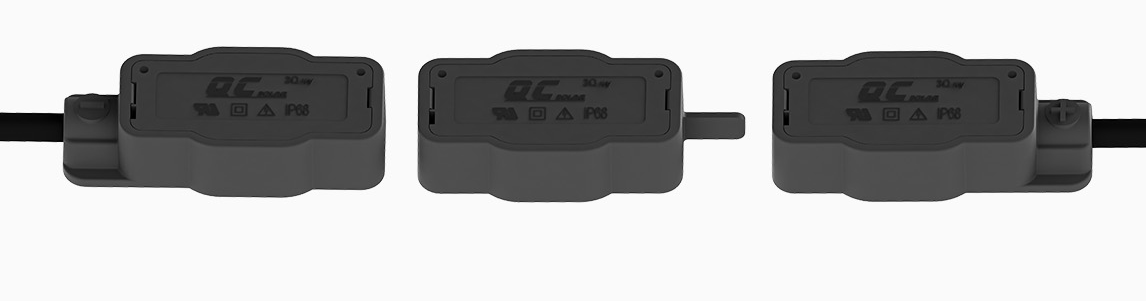

When people talk about solar panels, they often focus on modules, Inverters, and batteries. However, one small component plays a critical role in system safety and long-term performance—the pv module junction box.

A pv module junction box connects solar cells, protects electrical parts, and ensures stable power output. Choosing the wrong one can lead to overheating, water damage, power loss, or even fire risk. For installers, Epcs, and solar manufacturers, evaluating junction boxes before procurement is essential.

Below are five key factors you should consider before buying a pv module junction box.

1. IP Rating: Protection from Water and Dust

Solar systems work outdoors, often for 25 years or more. Rain, snow, dust, and humidity are unavoidable. That is why the IP rating of a pv module junction box matters.

IP (Ingress Protection) ratings show how well a product resists solid objects and liquids. For solar applications, common ratings include IP65, IP67, and IP68.
▪ IP65: Dust-tight and protected from water jets
▪ IP67: Protected against short-term water immersion
▪ IP68: Suitable for long-term exposure to moisture
A higher IP rating means better protection and longer service life. In harsh environments such as deserts, coastal areas, or high-humidity regions, choosing a pv module junction box with a high IP rating is a smart investment.

2. Thermal Management: Controlling Heat Build-Up

Heat is one of the biggest enemies of electrical components. Inside a pv module junction box, current flows continuously. If heat cannot escape, internal parts may degrade faster.

Good thermal management helps to:
▪ Reduce hot spots
▪ Protect diodes and connectors
▪ Maintain stable power output
▪ Extend product lifespan
Well-designed junction boxes use optimized internal layouts, heat-resistant materials, and efficient diode placement to improve heat dissipation. When comparing suppliers, always ask how their pv module junction box handles heat under high current and high ambient temperature conditions.

3. Safety Certifications: Proof of Reliability

Not all pv module junction boxes meet the same safety standards. Certifications show that a product has passed strict testing and complies with international rules.

Key certifications include:
▪ UL: Ensures electrical safety and fire resistance
▪ TUV: Confirms reliability, durability, and performance
▪ IEC standards: Common global benchmarks for solar components
Using a certified pv module junction box reduces risk during installation and operation. For B2B buyers, certifications are also important for project approval, insurance, and export compliance.

4. Electrical Ratings: Current and Voltage Capacity

Each pv module junction box is designed to handle a specific current (A) and voltage (V). If the box is under-rated, it may overheat or fail.

Before purchasing, confirm:
▸Maximum rated current (such as 20A, 25A, or 35A)
▸Maximum system voltage (commonly 1000V or 1500V)
▸Compatibility with modern high-power PV modules
As solar panels become larger and more powerful, the electrical demands on the pv module junction box continue to increase. Choosing a box that supports higher ratings ensures better system compatibility and future readiness.

5. Installation and Connection Design

Easy and secure installation saves time and reduces errors. A well-designed pv module junction box should support:
▸Strong cable fixation
▸Clear wiring paths
▸Reliable sealing methods
▸Compatibility with standard PV cables and connectors
Features such as vertical outlets, robust welding or clamping methods, and flexible cable sizes help installers work faster while ensuring long-term connection stability. Poor connection design may cause cable stress, loose contacts, or water leakage over time.

Conclusion

Choosing a pv module junction box is not just a technical decision—it is a long-term reliability decision. While this component is rarely visible after installation, its performance directly influences system safety, uptime, and maintenance cost throughout the life of a solar project. A well-chosen junction box helps ensure that the energy produced by the module can be delivered consistently and safely year after year.

For buyers, the most reliable approach is to work with manufacturers that understand both product design and real-world solar operating conditions. Companies with long-term experience in solar connectivity, global manufacturing capabilities, and strong quality control systems are better positioned to support stable and scalable PV projects. QC Solar is one example of a supplier that aligns with these industry expectations, supporting solar systems with connection solutions designed for long-term performance.

Explore QC Solar's products and solutions to learn how to select reliable, high-performance junction boxes for your solar projects.
