Energy Storage Cable Harness: The Reliable Core of Power Transmission in Solar and Battery Storage Systems

During the operation of an energy storage system, stable and efficient energy transmission between the battery pack and external power equipment is required. This process places high demands on the electrical performance, mechanical strength, and environmental adaptability of connection components. As a key connection unit, the energy storage wiring harness not only carries out power transmission functions but also directly affects the overall safety and operational quality of the system.

What Is an Energy Storage Cable Harness?

An energy storage wiring harness typically consists of wires, Connectors, protective devices, and control circuits, connecting multiple battery units in an orderly manner into an integrated system.

In essence, the energy storage wiring harness can be understood as the "energy highway network" and the "information neural network" within the energy storage system, ensuring stable power transmission between different devices and enabling the continuous and reliable operation of the energy storage system.

Main Applications of Energy Storage Cable Harness

1. Industrial Sector
In industrial environments, the Energy Storage Cable Harness connects battery packs to battery clusters, enabling flexible series and parallel configurations. With a well-designed harness, engineers can freely combine battery modules based on actual power needs without redesigning the entire system. Industrial environments demand high vibration resistance, wear resistance, and dust protection from the harness.

2. Grid Energy Storage Systems
In grid energy storage systems, the Energy Storage Cable Harness acts as a "bridge" connecting the storage system to power conversion equipment (PCS), ensuring smooth power transmission. The harness must withstand frequent high-current charge/discharge cycles while maintaining very low energy loss and high reliability.

3. Solar Power Generation Systems
In solar power systems, the Energy Storage Cable Harness transmits energy from solar panels to conversion devices and storage units. It ensures efficient transmission of photovoltaic power to Inverters for AC/DC conversion, while delivering excess energy to battery backup. Outdoor applications require the harness to have UV resistance and high temperature tolerance.

4. Residential Energy Storage Systems
In home energy storage systems, the Energy Storage Cable Harness connects battery packs to inverters, enabling energy storage and conversion. This helps households balance power supply and demand while improving energy efficiency. Residential harnesses demand high safety and ease of use, typically using flame-retardant materials, anti-reverse plug designs, and optimized electromagnetic compatibility to avoid interference with home appliances.

QC Solar Energy Storage Cable Harness: Ensuring Efficient System Operation

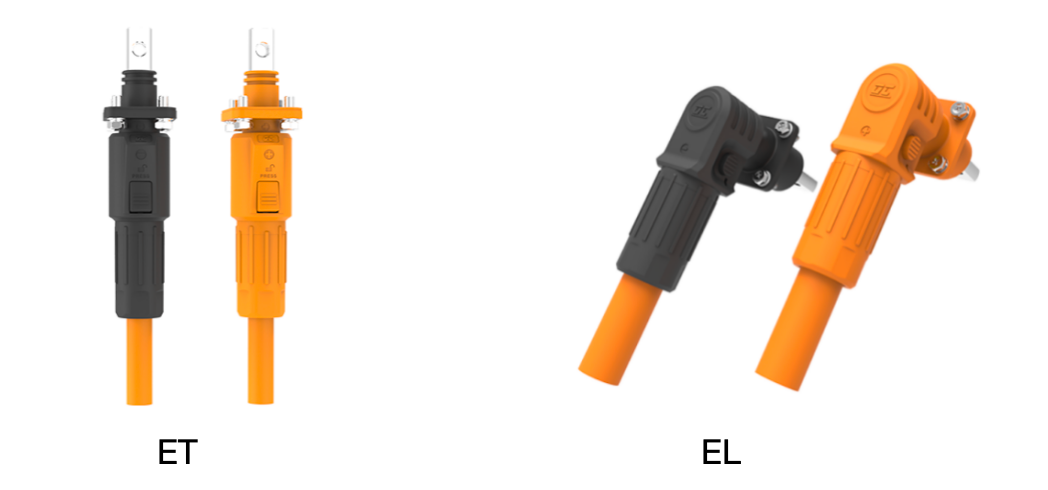

QC Solar's EL/ET Series Energy Storage Harness are designed specifically for demanding energy storage applications. They offer the following core technical advantages to ensure your system runs efficiently and safely.

1. Dual Button + Double Locking: Easy Operation and Secure Connection
The EL Series Energy Storage Connector features a symmetrical dual-button design, allowing easy operation with one or both hands — convenient even for left-handed users. After adjusting the connector to the desired wiring angle, press the button all the way down to achieve both angle lock and tension lock, ensuring no loosening under long-term vibration or external pulling.

Compared to traditional single-button designs, the overlap area between the latch and the base boss is increased by 23%, providing greater locking force and tensile strength to effectively prevent accidental disconnection.

2. Free Rotation + Anti-Misinsertion + Anti-Loss Bolts: Hassle-Free Installation

• Free Rotation: Before the plug is inserted into the base, the angle can be flexibly adjusted according to customer needs, making the overall wiring more neat and aesthetically pleasing (supported by both ET and EL series).
• Anti-Misinsertion Design: The positive and negative electrodes use different sizes and diameters, physically preventing reverse polarity connection.
• Anti-Loss Bolts: The base mounting holes feature an anti-loss structure, effectively preventing bolts from being accidentally lost during on-site installation.

3. Multi-Channel Waterproofing + Flexible Locking: Ready for Harsh Environments

The EL Series Energy Storage Connector achieves IP67 overall waterproof rating through a multi-seal structure:

• Cable end: Front O-ring + rear waterproof plug
• Socket and panel end: Square gasket (locked by 4 bolts) + O-ring between socket pin and inner wall
• Between plug and socket: Unique "M" shaped seal

Additionally, the cable screw supports two locking methods—manual or wrench — offering flexible and convenient operation.

Summary

From industrial storage to grid peak regulation, from solar power generation to home energy management, the Energy Storage Cable Harness serves as the reliable core of power transmission in every application scenario. It must not only withstand continuous high voltage and high current but also maintain stable and safe operation in harsh environments.

Choosing a reliable Energy Storage Cable Harness means choosing the foundation for long-term, stable operation of your energy storage system.
