How to Choose the Right Energy Storage Cable Harness
Are you struggling to choose the right energy storage cable harness for your storage project?
Many buyers face the same issue: products may look similar on paper, but perform very differently in real operation. Some systems run stably for years, while others quickly experience overheating, poor contact, or system alarms.
The real issue is not whether the specifications look good, but whether the product truly matches long-term operating conditions. That is why selection should not rely only on specifications, but also consider system requirements, materials, structure, and real application scenarios.
Define System Requirements First
Before comparing suppliers, the system conditions must be clearly defined. Key factors include:
- System voltage level (low / medium / high voltage)
- Application type (residential, commercial, or utility-scale storage)
- Installation environment (indoor or outdoor)
- Expected service life
Different projects place very different demands on an Energy Storage Cable harness. For example, outdoor systems require stronger UV resistance, moisture protection, and temperature durability, while indoor systems focus more on compact design and installation convenience.
Material Selection: The Key to Service Life
Many issues in storage systems are not caused by design errors, but by insufficient material selection.
- Conductor (Power Transmission Core)
The conductor directly affects electrical efficiency:
- High-purity copper → better conductivity and lower losses
- Good flexibility → easier installation and lower risk of breakage
- Stable structure → more reliable long-term operation
Low-quality conductors increase resistance, leading to heat buildup and efficiency loss.
- Insulation Layer
Modern systems often use cross-linked polyethylene (XLPE), a high-performance insulation material.
Key advantages include:
- High heat resistance
- Strong electrical insulation performance
- Improved mechanical strength
- Better long-term aging resistance
This makes it suitable for high-voltage and long-life Energy Storage Applications.
- Outer Jacket (Environmental Protection Layer)
The outer jacket ensures stable operation in real environments:
- UV resistance to prevent sunlight aging
- Waterproof and moisture protection for outdoor use
- Wide temperature adaptability
- Resistance to dust and chemical exposure
Poor outer protection can significantly shorten service life in outdoor applications.
Design Factors: Layout, Connectors, and EMI Protection
The design of an energy storage cable harness directly affects system performance, reliability, and maintenance efficiency.
- Layout and Routing
- Optimized routing reduces energy loss and signal interference
- Organized layout improves system clarity and installation quality
- Compact design is important for space-limited systems
- Proper routing simplifies maintenance and replacement
Good layout design improves both stability and installation efficiency.

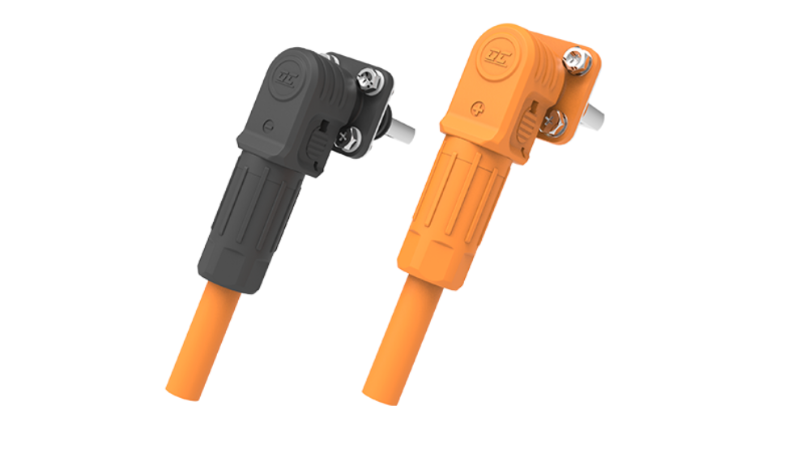

- Connector Reliability
- Strong locking structure prevents loosening due to vibration
- Anti-misconnection design reduces installation errors
- Stable contact resistance ensures consistent performance
- Sufficient plug-in cycles support long-term maintenance needs
Unstable connectors often lead to intermittent faults that are difficult to diagnose and can affect system operation.
- EMI Shielding and Stability
- High-power systems generate electromagnetic interference (EMI)
- Poor shielding may cause unstable signals and data errors
- It can lead to communication failures or system alarms
- Proper shielding improves overall system reliability
In high-density storage systems, EMI protection is critical for stable operation.
Safety Standards and Compliance Requirements
For an energy storage cable harness, safety standards and compliance are mandatory requirements, not optional features. High-voltage and high-current environments can create risks such as overheating, short circuits, or electrical fire if not properly designed.
Key requirements include:
- Compliance with international standards such as IEC 62619 for battery safety
- Reliable insulation to withstand high-voltage DC operation
- Materials that can handle temperature changes, humidity, and mechanical stress
- Continuous attention to updated regulations to ensure long-term compliance
Working with experienced suppliers also helps ensure smoother compliance during the design stage. In some cases, additional protective features can be integrated to further improve system safety and reliability.
Standard vs. Custom Solutions
In real projects, energy storage cable harness solutions are generally divided into two categories:
- Standard solutions: suitable for simple, repeatable system structures with common requirements
- Custom solutions: suitable for complex layouts, limited installation space, or special connector/interface needs
The key is not choosing the “better” option, but selecting the one that best fits the system architecture. When the harness design matches the overall system layout, it improves installation efficiency, enhances reliability, and ensures stable long-term operation.
Conclusion
The selection of an energy storage cable harness ultimately depends on overall compatibility and real-world performance. A suitable solution must not only meet basic technical requirements but also perform reliably under actual operating conditions and support long-term system stability. In project decision-making, overall system matching is often more important than any single specification.
