How to Choose the Right Junction Box for Your Solar Module

The Junction Box is one of the most critical yet often overlooked components of any solar module. Choosing the wrong one can result in performance issues, safety risks, and unhappy customers.

Let's walk through exactly what you need to know when selecting a junction box for your solar modules—using the 3Q-M junction box as a real-world example of what great design looks like.

What Exactly Does a Junction Box Do?

A good junction box ensures that the electricity generated by your solar cells actually makes it to your Inverter—and eventually to your home or business.

But not all junction boxes are created equal. Here's what you need to consider:

1. Current and Voltage Ratings: Don't Overlook the Basics

The first thing to check is whether the junction box can handle the electrical load your system will produce.

What to look for:

• Does it support multiple current ratings for different applications?
• Is it certified for the voltage your system requires?

The 3Q-M junction box offers rated currents of 20A, 25A, and 30A that you can easily switch between. That means one junction box design can work across different module types—pretty convenient, right? It also carries both TUV and UL 1500V certification, so it's ready for international projects.

2. Size Matters: The Hidden Impact of Junction Box Dimensions

Here's something many buyers don't consider until it's too late: the size of your junction box affects how much of your solar cell gets shaded.

Why this matters:

• A bulky junction box creates a "hot spot" shadow on the module
• More shading means less energy production
• Smaller boxes reduce this effect significantly

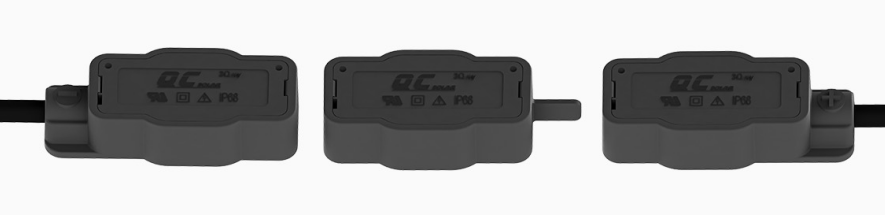

The 3Q-M junction box measures just 66.7 × 28.5 × 15.75 mm. That's remarkably compact, which means less shading on the solar cells and better overall performance.

2. Heat Management: The Long-Term Reliability Risk

Heat is the biggest challenge for solar components. A poorly designed junction box traps heat, accelerating diode failure and shortening system life.

Smart design features to look for:

• Even heat distribution, preventing localized hot spots
• Rapid heat draw via metal conduction paths

The 3Q-M features a center-mounted R6 diode. Its "folded-edge heat dissipation" and "copper-to-copper face welding" technologies deliver even heat dissipation for superior thermal performance.

4. Material Quality: You Get What You Pay For

This is one area where cutting corners always comes back to haunt you. Cheap materials degrade faster, especially under constant sun exposure and temperature swings.

What quality looks like:

• Premium plastic materials from trusted suppliers
• Materials rated for outdoor durability

The 3Q-M junction box uses plastic materials from Sabic and Asahi Kasei—internationally recognized brands known for reliability. The diodes are Schottky type (20SQ050, 30SQ050A, 40SQ045 models), which means better switching performance and lower power loss.

5. Installation Friendliness: Saving Time = Saving Money

If you're managing installations, you know that complicated products slow down your team and increase error rates. A well-designed junction box should be straightforward to work with.

The 3Q-M junction box includes smart touches like a top cover that only fits one way (foolproof design) and full 3D potting coverage for better protection. The recommended welding temperature is 350–400°C for 1–5 seconds—easy to remember and execute consistently.

Certifications: The Endorsement of Safety and Reliability

Certifications serve as the authoritative endorsement of a product's safety and performance. Choosing junction boxes with internationally recognized certifications is a key step in mitigating project risks and ensuring long-term returns.

Key Certification Standards: TUV Certification (European markets), UL Certification (North American markets), IP68 Protection Rating (the highest level of dust and water ingress protection).

The 3Q-M has simultaneously obtained both TUV and UL 1500V dual certifications and meets the IP68 protection rating. This means it can not only readily meet the stringent requirements of global markets but also provide you and your customers with comprehensive, round-the-clock safety assurance.

Making the Right Choice
Choosing the right junction box might seem like a small decision, but it has a big impact on your solar project's success. A quality junction box means fewer field failures, happier customers, and more referrals for your business. It means your installation teams stay productive without dealing with frustrating product issues. It means you can confidently sell into any market, knowing your components meet the highest safety standards.

The 3Q-M junction box embodies everything Qc Solar knows about what makes a great junction box. It's compact yet powerful, simple to use yet technologically advanced—engineered not just for today's modules, but also for tomorrow's innovations.Explore QC Solar and see the difference.
