Inverter's "Neural Network": QC Solar PV AC Connector Series

2025-01-22

In the field of renewable energy, the Inverter, as the core component of the solar photovoltaic power generation system, the stability and efficiency of its performance are directly related to the operation effect of the entire system. And the inverter AC connector, as the bridge between the inverter and the grid, its importance is self-evident. QC Solar inverter AC connector, with its diverse application scenarios and excellent performance, is highly anticipated!

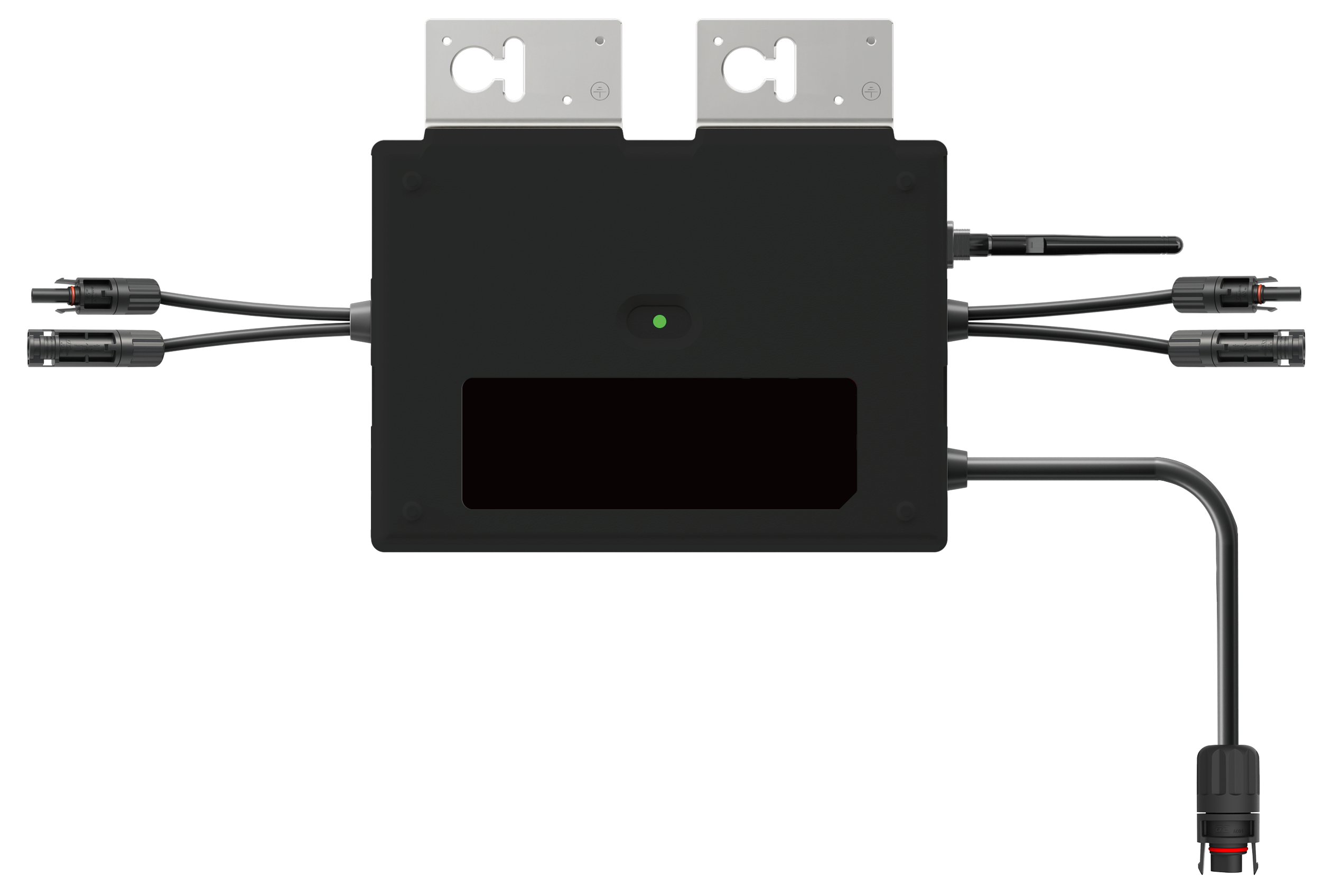

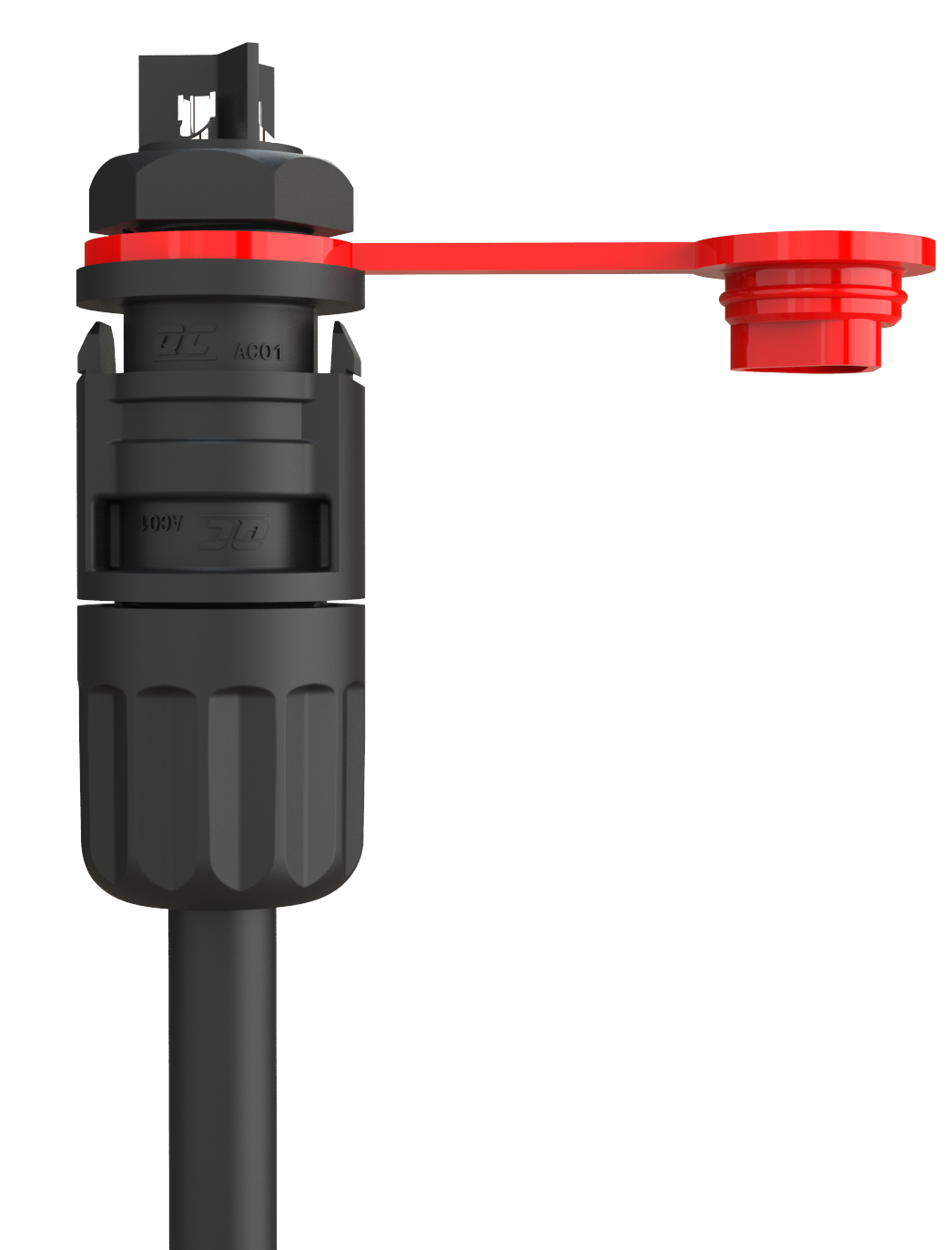

AC01 Connector: Can be used at the output end of the micro inverter
1.The installation method is variable. You can choose the board end connector to directly fix it to the box, or you can choose the wire end connector to connect to the box through SR.
2.The ultraviolet resistant shell material is selected and can be used outdoors for a long time.
3.The conductor is made of copper metal with smaller resistance and silver plating, with low contact resistance and less heat generation.
4.The direct insertion connection is convenient to use.
5.The structure is compact and the connector is stable and reliable.

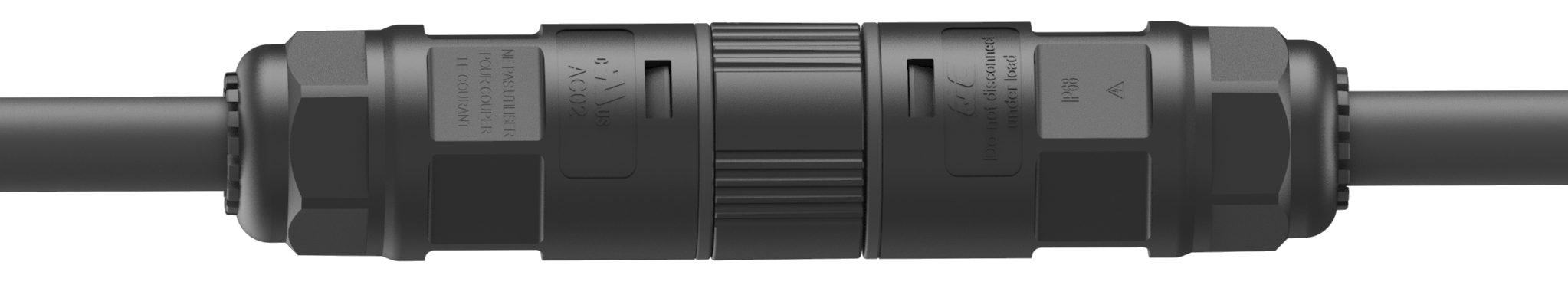

AC02 Connector: Can be used at the output end of the hand-in-hand micro inverter
1.The ultraviolet resistant shell material is selected and can be used outdoors for a long time.
2.The conductor is made of copper metal with smaller resistance and silver plating, with low contact resistance and less heat generation.
3.The installation is convenient and fast. The self-locking can be achieved by rotating the ring lock after Plugging in.
4.The use is safe and reliable. Tools are needed when separating the male and female plugs and it cannot be unlocked by hand.

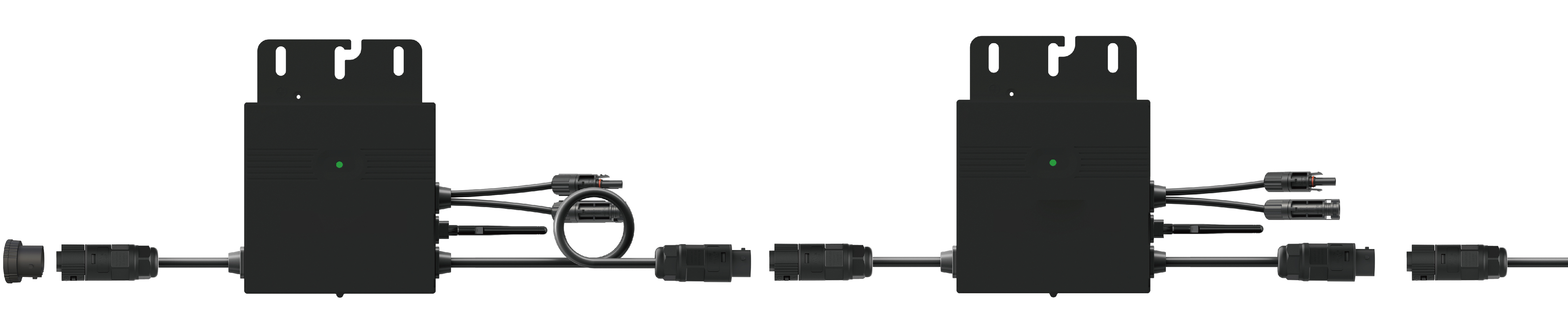

5.The hand-in-hand connection method effectively reduces the use of cables and reduces the overall cost.
The extension cord can be selected according to the actual working

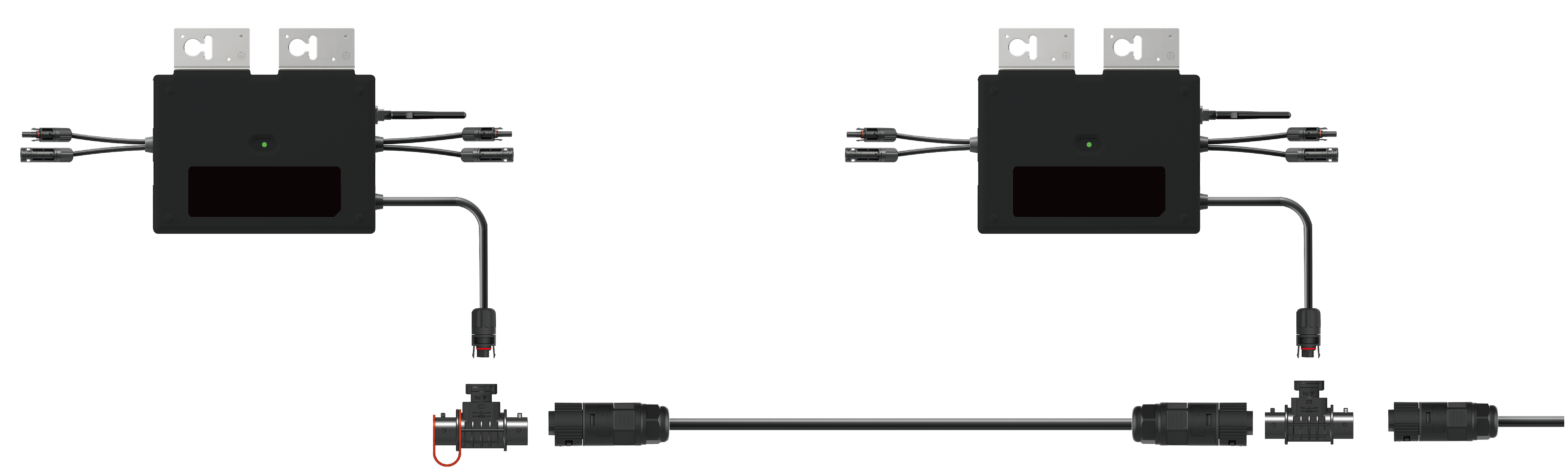

BUS01 Tee Connector: Plug - and - Play, Easy Installation
1.It is used in conjunction with AC01 and AC02 connectors for bus - type connection.
2.Made of UV - resistant material with an IP68 protection rating, it can be used outdoors for an extended period.
3.There is no need for numerous complex procedures or manual wiring.
4.The connector is pre - assembled in the factory. It is plug - and - play on - site, with simple operation.
5.On - site operation time is significantly reduced. The process of ordering connectors is simplified, eliminating the hassle of terminal matching.
6.Each component undergoes strict quality control. All components of the system are of reliable and high - quality, ensuring safe use.

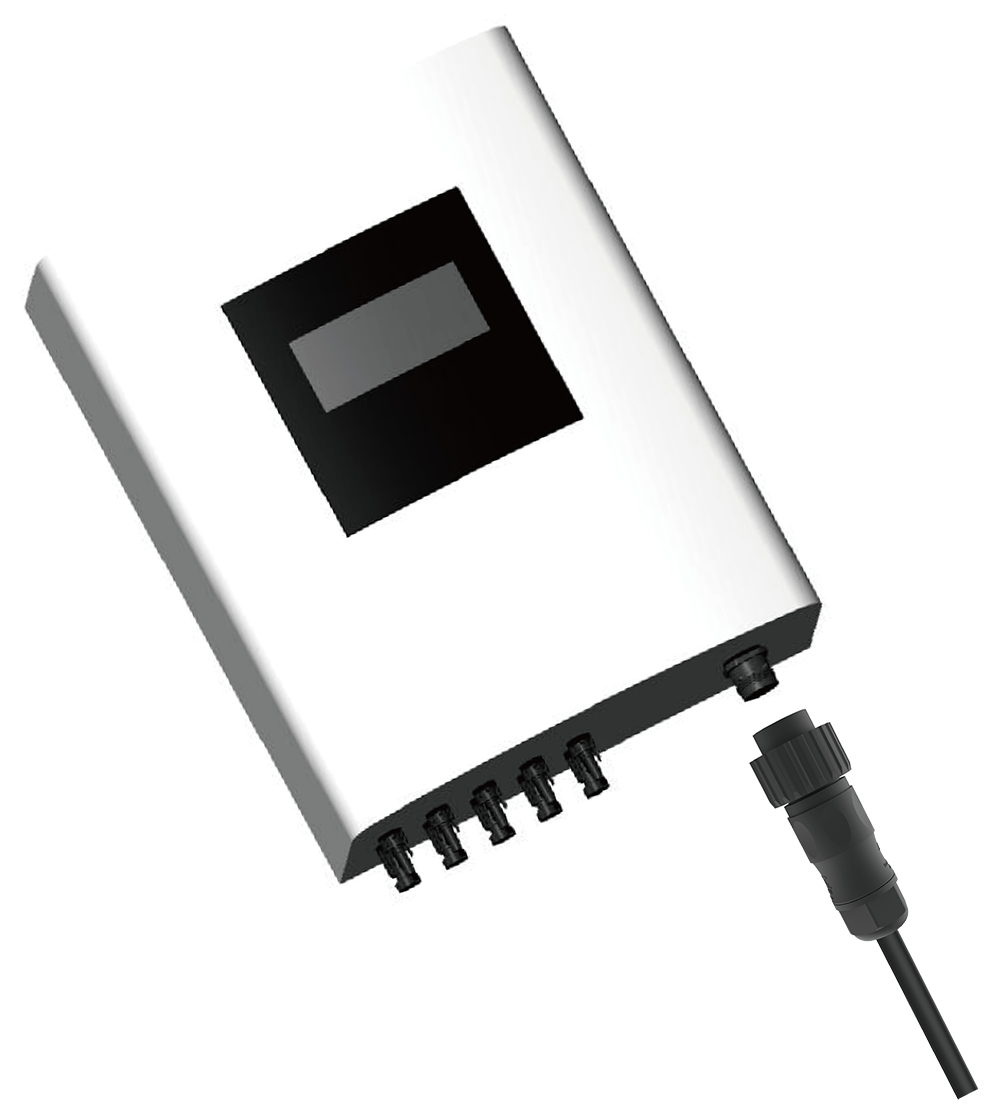

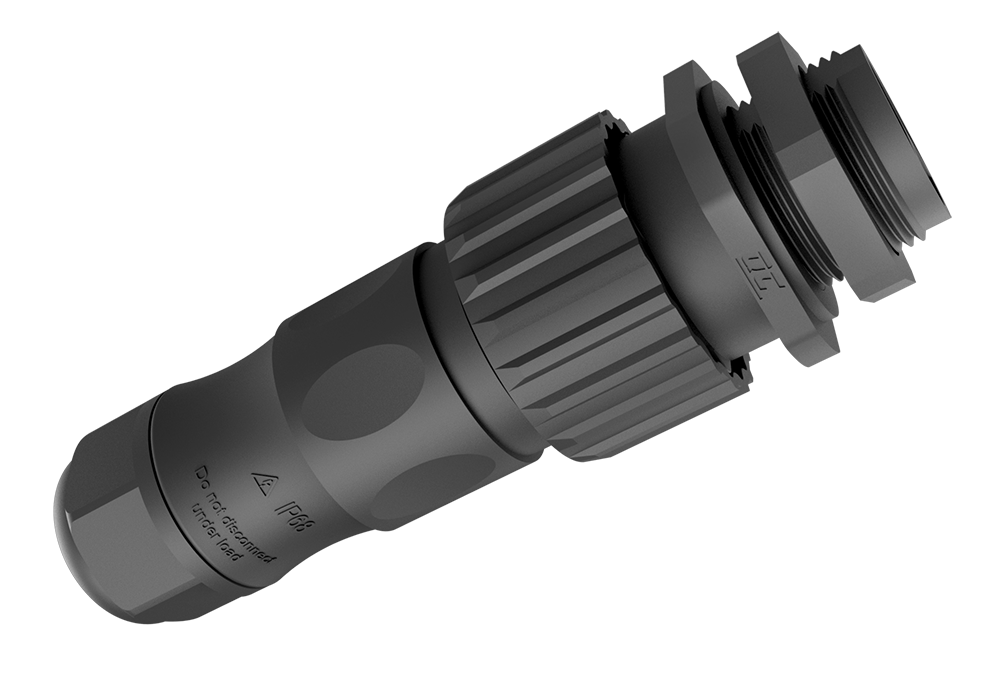

AC03 Connector: Applicable to the AC Output End of the Inverter

1.The AC03 connector is suitable for connecting to the AC output end of inverter equipment in solar systems.
2.With a UV - resistant housing material, it can be used outdoors for a long time.
3.It is easy and quick to install. After plugging, self - locking can be achieved by rotating the ring lock.
4.It is safe and reliable in use. An anti - loosening device is set at the end of the connection thread to resist loosening caused by vibration.
5.The installation is convenient and fast, and replacement and maintenance are even simpler.

QC Solar AC connectors are suitable for various application scenarios such as bus, hand-in-hand and balcony micro-inverter systems. Whether it is a large ground power station or the rooftop photovoltaic system of residential and commercial buildings, the most suitable solution can be found. In the future, we will continue to focus on technological innovation and product research and development to provide users with higher quality and efficient photovoltaic system solutions and jointly create a better tomorrow for renewable energy.
