QC Solar Photovoltaic cage

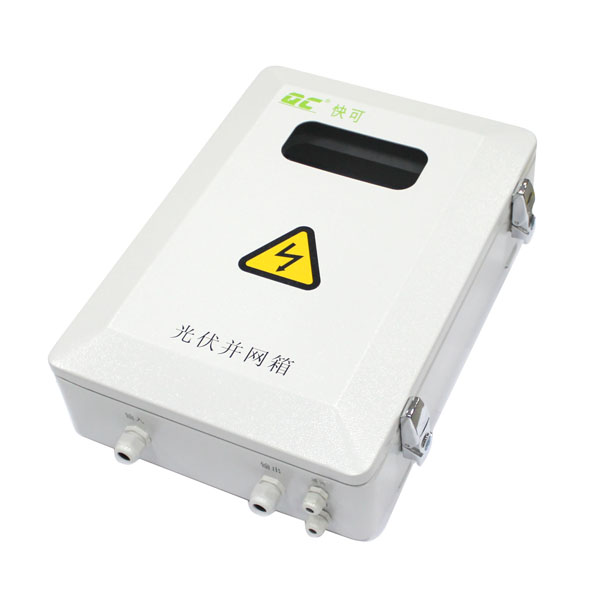

The product adopts the design concept of integrated curved surface aesthetics. Its appearance is not only aesthetically pleasing in shape but also compact in structure. The functional areas are clearly divided into upper and lower parts. There is a transparent window on the cabinet door, which makes it convenient to observe the parameters of the electricity meter. The door of the electricity meter compartment can be sealed with a lead seal to prevent electricity theft. A self-resetting over-voltage and under-voltage protector is used, which effectively improves the power generation and the reliability of power supply. It also has lightning protection and switch protection functions, and is equipped with the function of electric energy measurement.

High reliability

Easy installation

Easy installation

lightning protection

Technical Data

Type	QC-AC-1-10KW/QC-AC-10-20KW
Electrical Specifications
Input current circuit number	1 line
Output current circuit number	1 line
（AC)Input voltage range	AC 100V-415V
Applicable circuit	220V / three phase 400V
Maximum AC input voltage	415A
Maximum single AC input voltage	60A（Upgradeable）
Maximum single AC output current	60A（Upgradeable）
AC surge protection	YES
Overload and short circuit protection of circuit breaker	YES
Others
Weight	14kg/20kg
Dimension	500300150mm/650400170mm
Material	galvanized steel plate, Cold-pressed steel plate, 304 stainless steel
Installation method	Wall mounted installation
Protection Degree	IP65
Temperature Range	-25℃~+60℃
Operating humidity range	0%~95%
Operating altitude range	≤2000M

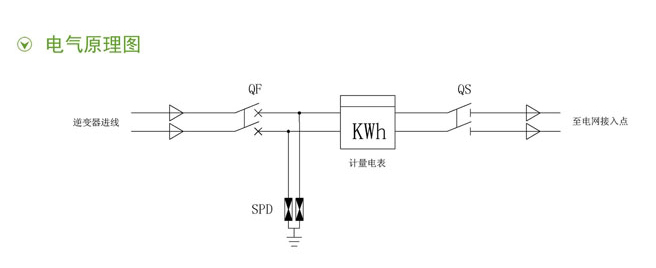

Dimensions(mm)

The Photovoltaic Cage: A Revolutionary Energy Solution

The Photovoltaic Cage is a remarkable product that embodies an integrated curved surface aesthetic design concept. Its appearance is not only aesthetically pleasing but also features a compact structure.

The functional areas are clearly distinguished top and bottom. The door of the cage has a transparent window, facilitating convenient observation of the electricity meter parameters. The door of the electricity meter compartment can be lead-sealed to prevent electricity theft, ensuring the security and accuracy of power consumption measurement.

This cage is equipped with a self-resetting over-voltage and under-voltage protector. This feature effectively enhances the power generation capacity and the reliability of the power supply. It also incorporates lightning protection and switch protection, significantly reducing the risk of damage caused by electrical surges and abnormal power fluctuations.

In addition, the Photovoltaic Cage has an electricity energy measurement function. This allows for precise monitoring and analysis of the power generated and consumed, providing valuable data for energy management and optimization.

The combination of its aesthetic design and practical functionality makes the Photovoltaic Cage an ideal choice for various applications. Whether it is in large-scale solar power plants or smaller distributed photovoltaic systems, it seamlessly integrates into the environment while providing reliable and efficient power solutions.

The compact structure of the cage ensures that it occupies minimal space without compromising on performance. It is engineered to withstand different weather conditions and environmental challenges, guaranteeing long-term stability and durability.

Overall, the Photovoltaic Cage represents a significant advancement in the field of photovoltaic technology. Its innovative design, comprehensive protection features, and measurement capabilities make it a standout product that contributes to the efficient and sustainable utilization of solar energy.
