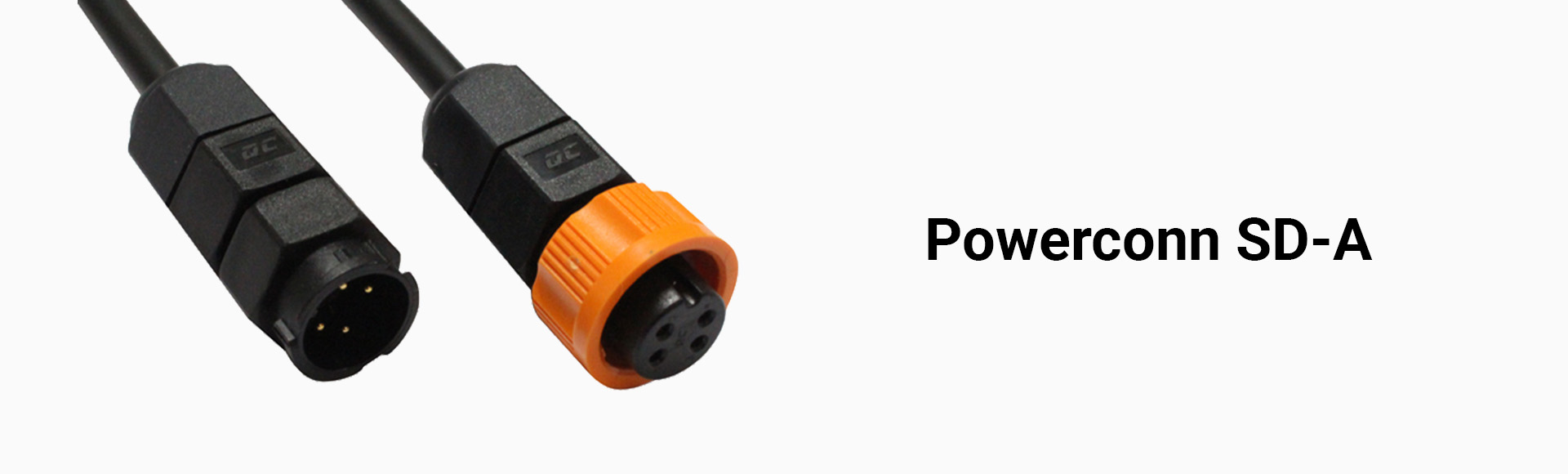

Powerconn SD-A1ds

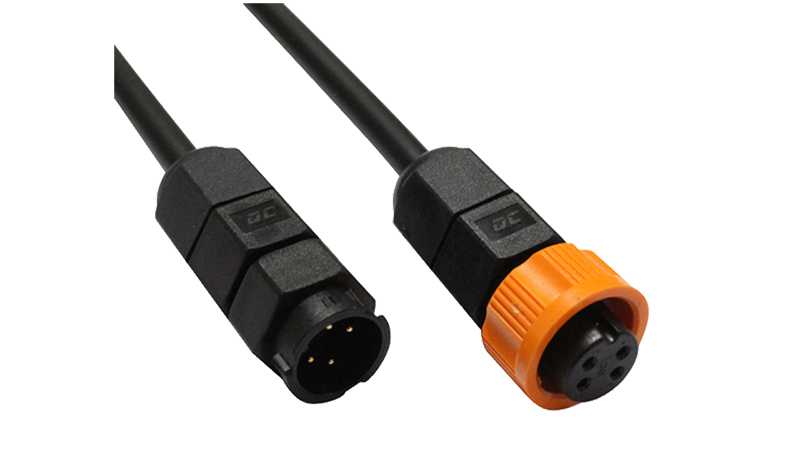

M8-series-dual-end-pre-cast-wire-harnessudq

QC Solar Powerconn SD-A

Powerconn SD-A stands out as a remarkable innovation in the world of connectivity, offering a seamless and reliable solution for various applications.

Easy to install

Protection grade up to IP68

Customization available

Technical Data

Number of contact 2 3 4 5 6 7 9
Male Contact face view
Part Number SD-A2 SD-A3 SD-A4 SD-A5 SD-A6 SD-A7 SD-A9
Rated current(A) 10A 10A 5A 5A 5A 5A 3A
Rated voltage 500V 250V 125V 125V 125V 125V 125V
Test voltage(AC.V) 1 min 1500V 1500V 1000V 1000V 1000V 1000V 1000V
Contact resistance 5mΩ 5mΩ 5mΩ 5mΩ 5mΩ 5mΩ 10mΩ
Pin Diameter 2*1.5 3*1.5 4*1.0 5*1.0 6*1.0 7*0.7 9*0.7
Wire Size mm/AWG ≤2/14 ≤2/14 ≤0.785/18 ≤0.785/18 ≤0.785/18 ≤0.785/18 ≤0.785/18

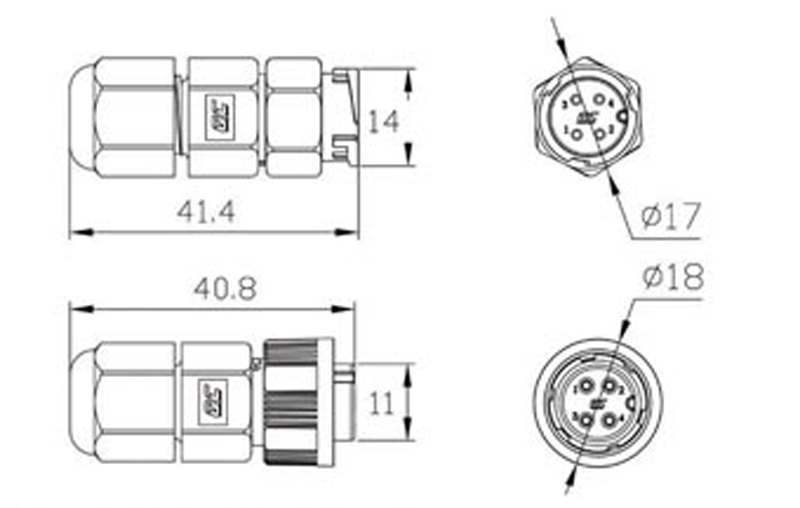

Dimensions(mm)

Powerconn-SD-A-2y1w
Powerconn SD-A: Unleashing Efficient Connectivity

The Powerconn SD-A stands out as an extraordinary innovation in connectivity, providing a seamless and reliable solution for a wide range of applications.

Powerconn SD-A connectors are designed with careful attention to detail to ensure a high level of performance and durability. The design incorporates advanced materials and manufacturing techniques to ensure long-term use without compromising functionality.

A distinguishing feature of the Powerconn SD-A is its excellent data transfer capability. In an era where information flow is critical, this connector enables fast and error-free transmission of large amounts of data. This makes it ideal for applications that require high-speed communication, such as advanced computing systems, data centers and multimedia setups.

In addition to data transmission, the Powerconn SD - A excels in power transmission. It is able to handle large power loads, ensuring a stable and continuous energy supply to the connected devices. This is especially important for power-hungry devices like high-performance laptops, industrial equipment and charging stations.

The connector's compact and stylish design is another advantage. It takes up very little space while still providing a secure and robust connection. This makes it suitable for space-constrained devices such as portable electronics and compact machinery.

The Powerconn SD - A has also been designed to be highly resistant to environmental factors. It is able to withstand humidity, dust and temperature changes for both indoor and outdoor environments. This adaptability ensures uninterrupted performance in a variety of challenging conditions.

In addition, the Powerconn SD-A is easy to install and remove, simplifying maintenance and upgrades. Its user-friendly interface allows for quick and hassle-free connections, reducing the time and effort required for setup and maintenance.

In short, the Powerconn SD-A is a game-changer in the world of connectivity. With its excellent data transfer speeds, efficient power transfer, compact design, durability and ease of use, it has become an indispensable component in a wide range of applications. It supports modern technology by providing a reliable and efficient connectivity solution that meets the demanding needs of today's digital world.
