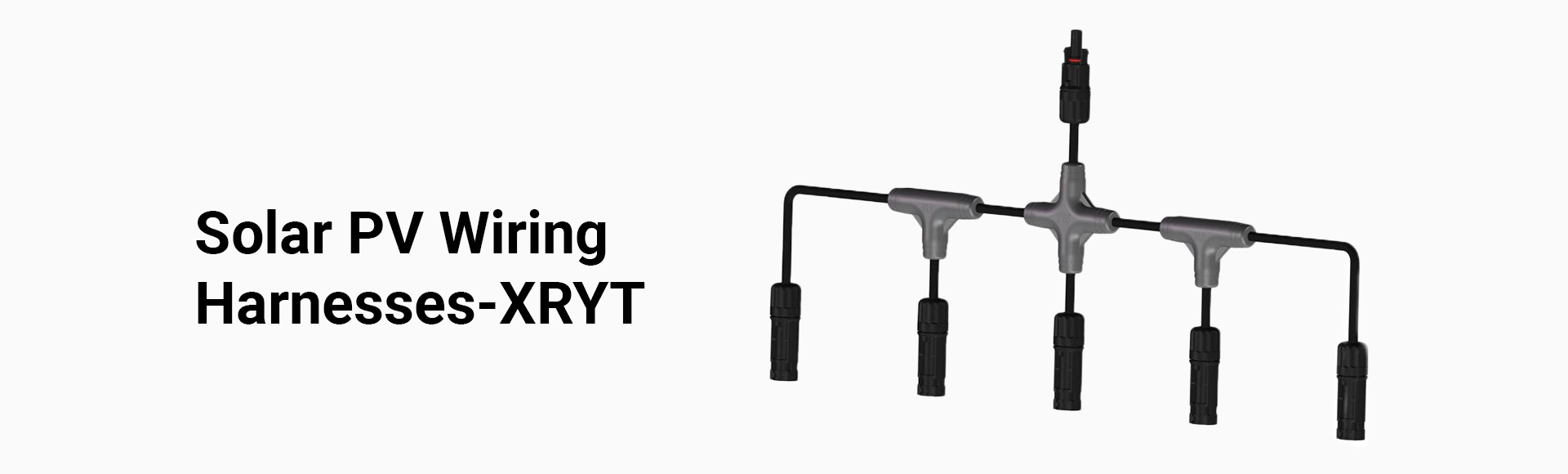

Solar PV Wiring Harnesses-XRYT5fb
product details
Other Descriptions

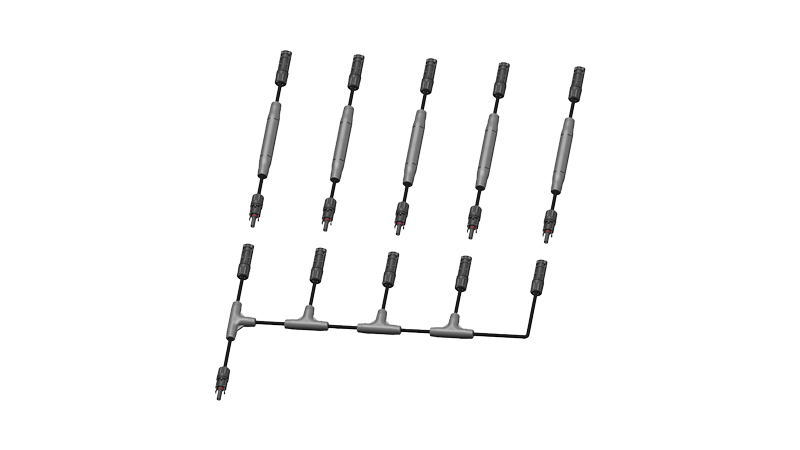

PV-Cable-Harnesszyd

QC Solar PV Cable Harnesses

1. Various specifications suitable for a wide range of application
2. Shape customization available
icon30918

Special PV Cable

icon11vti

Waterproof grade up to IP68

icon4b1f

Easy installation

icon20slw

custom-made

Technical Data

Item Solar PV Wiring Harnesses-X/R/Y/T
Rated Voltage 1000VDC 1500VDC
Size of Cables 4.0mm²（12AWG） 6.0mm²（10AWG）
Protection Class II
Temperature Range -40℃〜+85℃
Contact Resistance ＜0.2mΩ
Protection Grade IP68
Flammability Class V-0

Details

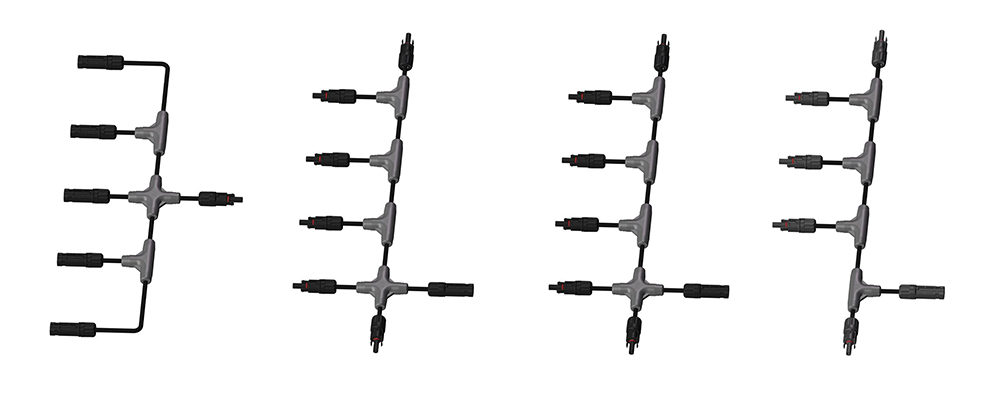

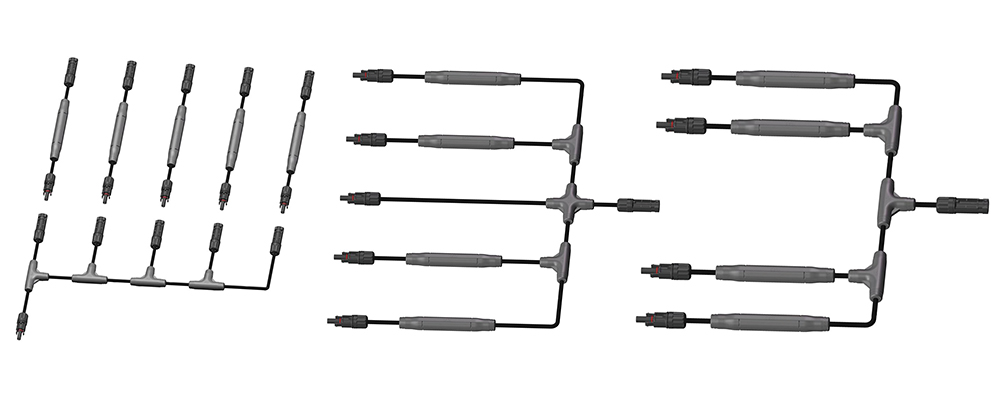

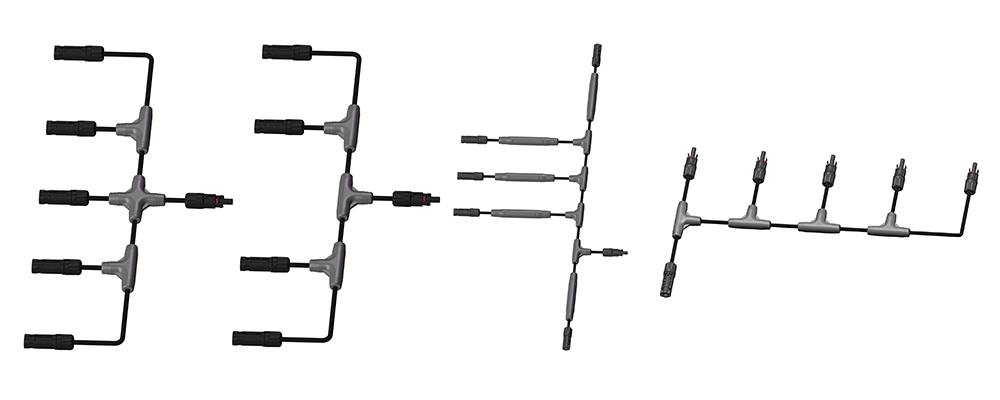

pic001pic002pic003
Photovoltaic Cable Harnesses: Enabling Efficient Solar Transmission

Photovoltaic cable harnesses are an integral part of the solar ecosystem and play a key role in the efficient transmission of electricity generated by photovoltaic cells.

PV cable harnesses are specifically designed to meet the unique challenges and requirements of solar energy systems. They are carefully designed to withstand the harsh environmental conditions often encountered in solar installations. This includes intense sunlight exposure, large temperature variations, humidity and even mechanical stress. The high-quality materials used to manufacture them ensure durability and long-term performance.

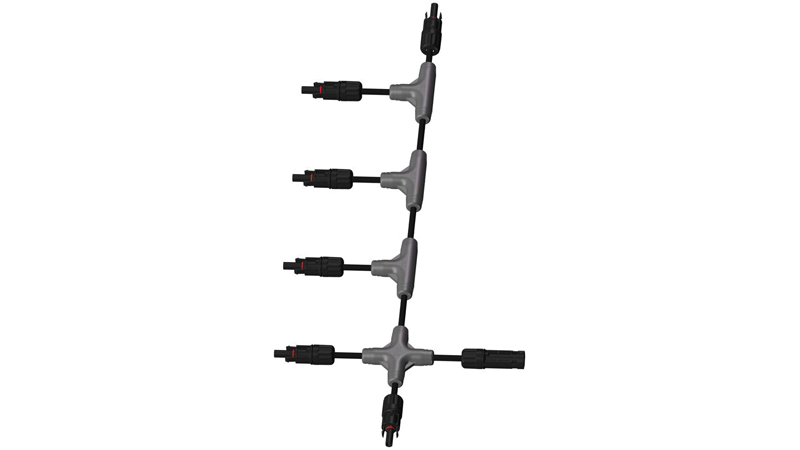

  • Solar-01c2i
  • A key feature of photovoltaic cable harnesses is the ability to consolidate and organize multiple cables into a single, manageable unit. This not only simplifies the installation process, but also reduces clutter and the potential for cable damage. Well-arranged configurations of wire harnesses contribute to the overall aesthetics and operability of a solar installation.
  • In addition, PV cable harnesses are available in a variety of lengths and configurations to accommodate different solar panel arrangements and mounting locations. This flexibility allows for seamless integration into a variety of solar projects, whether they are rooftop installations, ground-mounted arrays or large-scale solar power plants.

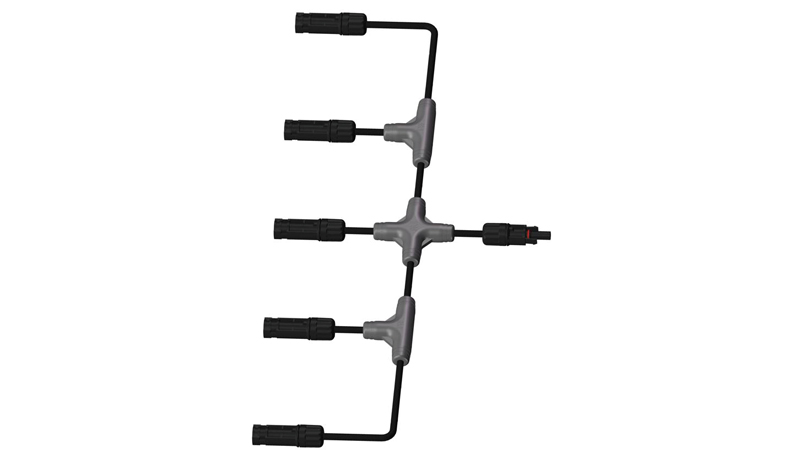

  • Solar-03qol
Another significant advantage is the customized configuration of the cable harness. This means that the harness can be customized to the specific needs and requirements of each solar project. Whether it's the number of cables, the type of connectors or the layout, a customized PV cable harness ensures a perfect match to the unique setup, optimizing performance and functionality.

In terms of performance, a well-built PV cable harness ensures minimal power loss during transmission. The quality of the conductors and insulation used has a significant impact on the efficiency of the energy transfer. A high-quality harness minimizes resistance and voltage drop, maximizes the power output of the solar panel and increases the efficiency of the overall system.

In terms of safety, PV cable harnesses are designed to meet stringent industry standards. They provide reliable insulation and protection against electrical hazards, ensuring the safety of installers and users. Regular inspection and maintenance of the harnesses is essential to detect any signs of wear or damage and to ensure continued safe and efficient operation.

In conclusion, PV cable harnesses are a critical component that contributes to the reliable and efficient operation of solar energy systems. Its role in organizing, protecting and facilitating the transmission of solar energy should not be underestimated as we continue to embrace solar energy as a sustainable source of energy for a cleaner future.
