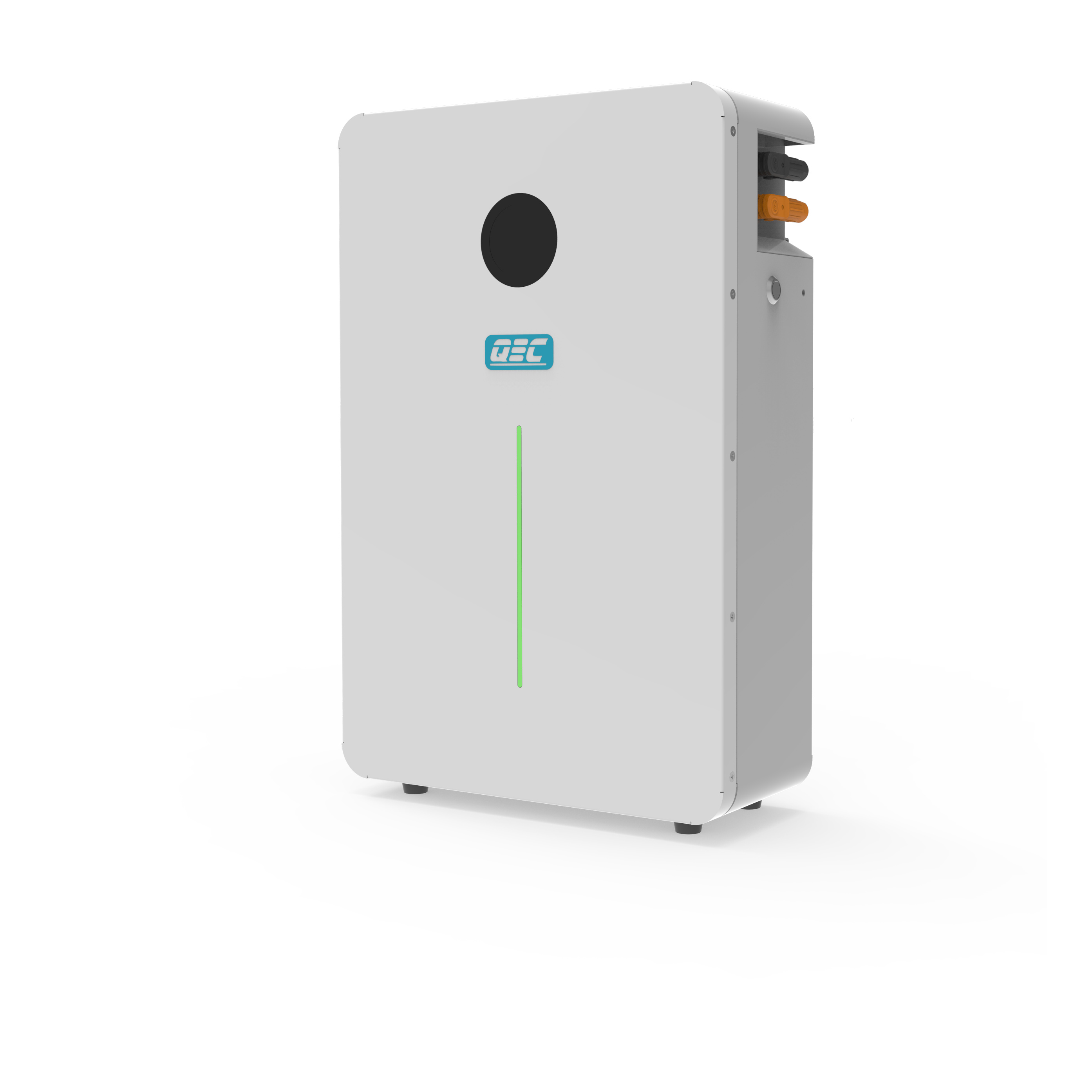

Energy Storage Pack QCESS-100

Safety: Equipped with EVE 102Ah LiFePO₄ battery, featuring high safety, long lifespan and high energy density.
High Performance: Supports up to 1C charge/discharge, meeting customers' fast charging and discharging needs.
Reliability: Built-in intelligent BMS and fire protection system for comprehensive protection.
Flexibility: Built-in Bluetooth enables remote monitoring via APP. The modular design allows easy capacity expansion, supporting up to 20 units in parallel, suitable for residential and commercial applications to improve utilization.
Installation Method: Flat design, wall-mounted with mounting bracket.
High Protection Rating: IP65, resistant to severe weather such as thunderstorms and heavy snow.

Specification

Convenient Installation

Long-term Reliability

Easy Expansion

Multiple Protections

Technical Data

Model	QCESS-100
Battery Type	LiFePO₄
Operating Voltage / Capacity	51.2V/102Ah
Rated Energy	5.22KWh
Voltage Range	44.7V-57.6V
Recommended Charging Voltage	56V
Recommended Discharging Voltage	48V
Standard Charge / Discharge Current	50A
Maximum Continuous Charging Current	100A
Maximum Continuous Discharging Current	100A
Recommended Charge/Discharge Rate	0.5C
Cycle Life	≥6000 Cycles / 6-Year Warranty
Depth of Discharge (DOD)	95%
Charging Temperature	0°C - 55°C
Discharging Temperature	-20°C - 55°C
Recommended Operating Temperature	0°C - 35°C
IP Rating	IP65/IP21
Product Dimension (WHD)	450580150mm
Net Weight	58KG
Capacity Expansion	20 units
Fire Protection System	Built-in Aerosol Fire Extinguisher
Communication Interface	CAN/RS485
Bluetooth Function	Built-in Bluetooth, APP Control
Certifications	UN38.3/MSDS/IEC62619/CE
Compatible Inverters	GOODWE/ Ginlong/SUNGROW/CPS/Senergy/SOFAR/AISWEI/Growatt/ SMA/Victron/Hoymiles/Sol-Ark/Studer/TBB/Deye/Afore/Magreen/INVT/Solarmax

Details

QCESS-100 is a low-voltage product engineered for residential energy storage scenarios. Boasting a high IP55 protection rating, it supports both indoor and outdoor installation. The product adopts a wall-mounted design and features a modular structure for higher integration, which effectively saves installation space. It allows parallel connection of up to 20 units, easily meeting daily power consumption needs. Compatible with mainstream inverter protocols available on the market, it enables direct communication. It also comes with a variety of protective functions, including over-temperature alarm, over-charge and over-discharge protection, as well as short-circuit protection.

Safety: Equipped with EVE 102Ah LiFePO₄ battery, featuring high safety, long lifespan and high energy density.

High Performance: Supports up to 1C charge/discharge, meeting customers' fast charging and discharging needs.

Reliability: Built-in intelligent BMS and fire protection system for comprehensive protection.

Flexibility: Built-in Bluetooth enables remote monitoring via APP. The modular design allows easy capacity expansion, supporting up to 20 units in parallel, suitable for residential and commercial applications to improve utilization.

Installation Method: Flat design, wall-mounted with mounting bracket.

High Protection Rating: IP55, resistant to severe weather such as thunderstorms and heavy snow.
