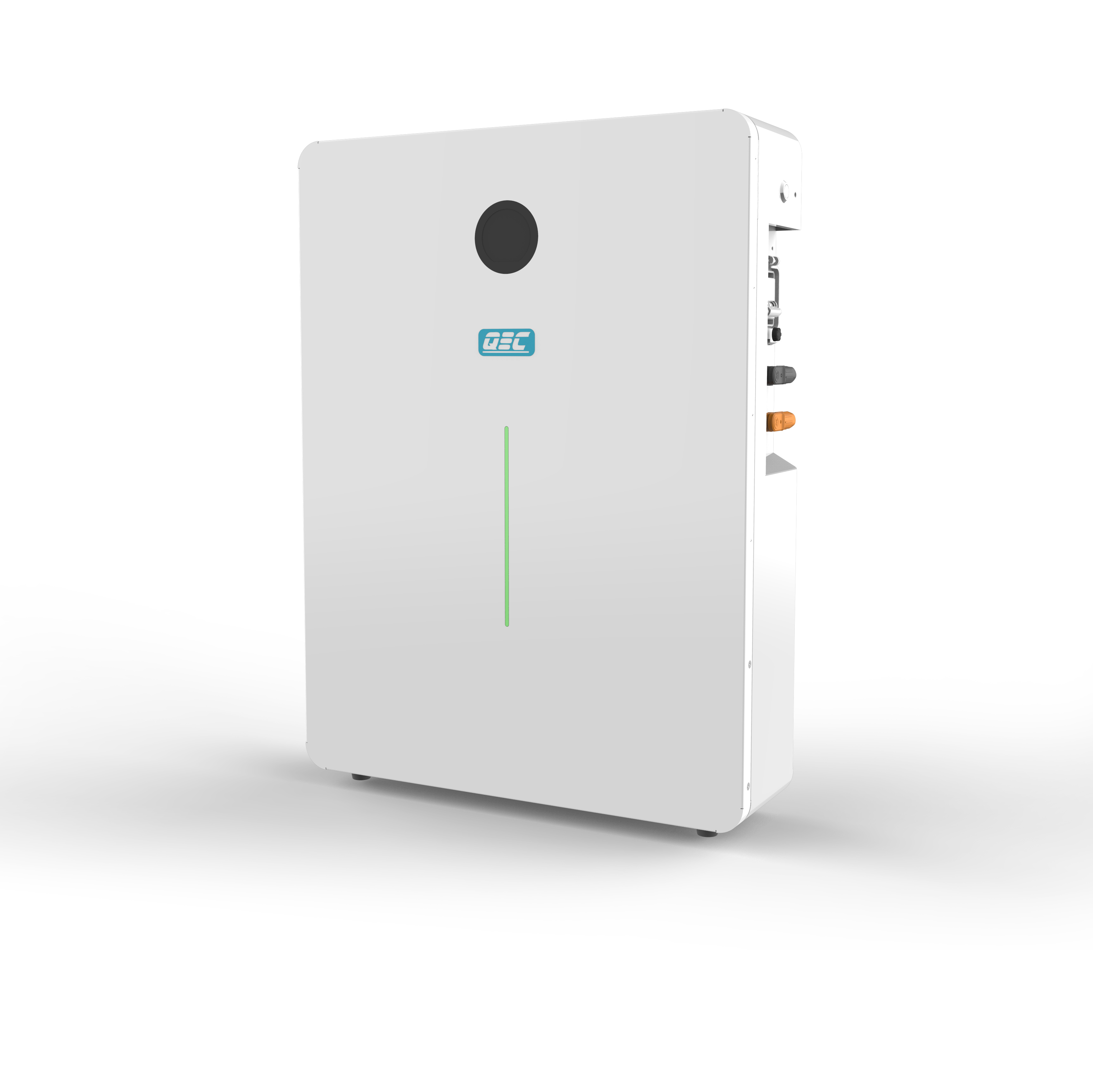

Energy Storage Pack QCESS-200

Safety: Equipped with EVE 204Ah LiFePO₄ battery, featuring high safety, long lifespan and high energy density.
High Performance: Supports up to 1C charge, meeting customers' fast charging needs.
Reliability: Built-in intelligent BMS and fire protection system for comprehensive protection.
Flexibility: Built-in Bluetooth enables remote monitoring via APP. The modular design allows easy capacity expansion, supporting up to 20 units in parallel, suitable for residential and commercial applications to improve utilization.
Installation Method: Flat design, available in wall-mounted (with mounting bracket) and floor-mounted (with detachable feet) options, saving installation space.
High Protection Rating: IP65, resistant to severe weather such as thunderstorms and heavy snow.

Specification

Convenient Installation

Long-term Reliability

Easy Expansion

Multiple Protections

Technical Data

Model	QCESS-200
Battery Type	LiFePO₄
Operating Voltage / Capacity	51.2V/204Ah
Rated Energy	10.547KWh
Voltage Range	44.7V-57.6V
Recommended Charging Voltage	56V
Recommended Discharging Voltage	48V
Standard Charge / Discharge Current	100A
Maximum Continuous Charging Current	150A
Maximum Continuous Discharging Current	100A
Cycle Life	≥6000 Cycles / 6-Year Warranty
Depth of Discharge (DOD)	95%
Charging Temperature	0°C - 55°C
Discharging Temperature	-20°C - 55°C
Recommended Operating Temperature	0°C - 35°C
IP Rating	IP65/IP21
Product Dimension (WHD)	450780150mm
Net Weight	105KG
Capacity Expansion	20 units
Fire Protection System	Built-in Aerosol Fire Extinguisher
Communication Interface	CAN/RS485
Bluetooth Function	Built-in Bluetooth, APP Control
Certifications	UN38.3/MSDS/IEC62619/CE
Compatible Inverters	GOODWE/ Ginlong/SUNGROW/CPS/Senergy/SOFAR/AISWEI/Growatt/ SMA/Victron/Hoymiles/Sol-Ark/Studer/TBB/Deye/Afore/Magreen/INVT/Solarmax

Details

QCESS-200 is a low-voltage product designed for residential energy storage scenarios. It features a high IP55 protection rating, supporting both indoor and outdoor installation. The product offers multiple installation options, with a modular design for higher integration and reduced installation space. It supports up to 20 units in parallel, easily covering daily electricity needs. Compatible with mainstream inverter protocols on the market, it enables direct communication. It also comes with diverse protective functions, including over-temperature alarm, over-charge/over-discharge protection, and short-circuit protection.

Safety: Equipped with EVE 206Ah LiFePO₄ battery, featuring high safety, long lifespan and high energy density.

High Performance: Supports up to 1C charging, meeting customers' fast charging needs.

Reliability: Built-in intelligent BMS and fire protection system for comprehensive protection.

Flexibility: Built-in Bluetooth enables remote monitoring via APP. The modular design allows easy capacity expansion, supporting up to 20 units in parallel, suitable for residential and commercial applications to improve utilization.

Installation Method: Flat design, available in wall-mounted (with mounting bracket) and floor-mounted (with detachable feet) options, saving installation space.

High Protection Rating: IP55, resistant to severe weather such as thunderstorms and heavy snow.
