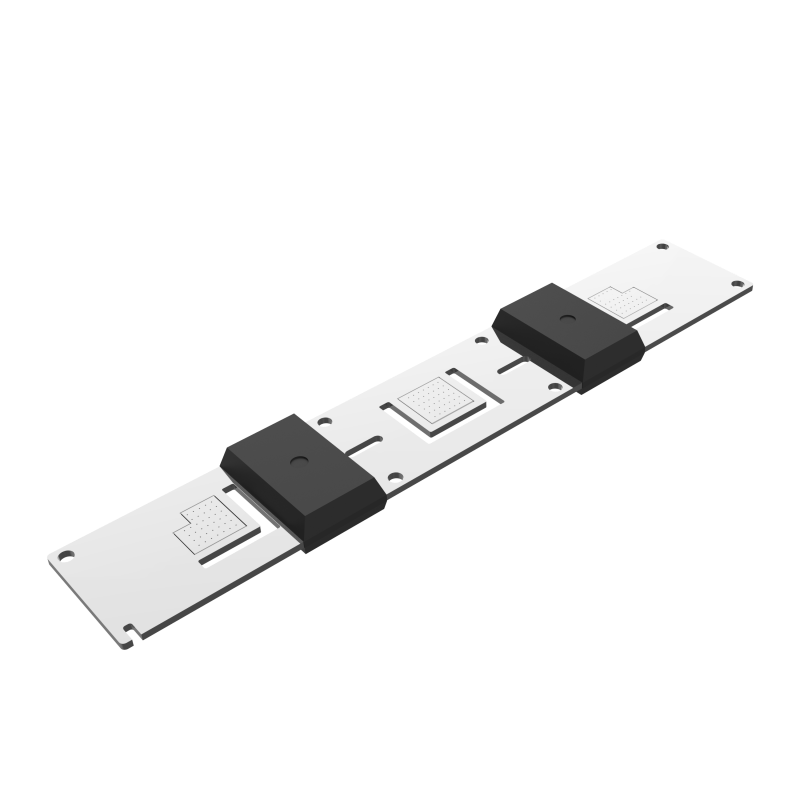

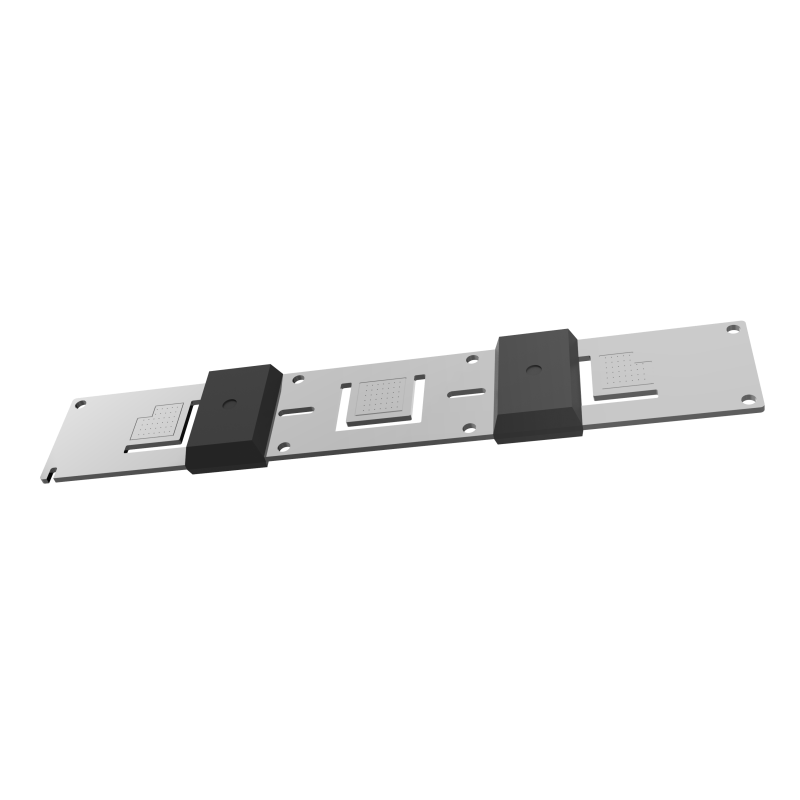

QC2H Series Bypass Diode Module For PV

Single split design saves box material, promotes energy conservation and emission reduction, meets market demand, improves component efficiency, reduces the impact of component hot spot effect, and features safety, reliability, low contact impedance, high heat dissipation performance and diverse options.

    Contact us
    product details
    product description
    Product Name VRM_Max (V) Io_Max(A) VF_Max(V) Rated lo(A) IFSM_Max(A) IR@25℃IR(uA) Tj（℃） Status Pdf
    QC2H4045 45 40 0.55 25 400 100 -55 ~ +200 Active file-pdf-fill
    QC2H5045B 45 50 0.53 30 400 100 -55 ~ +200 Active file-pdf-fill
