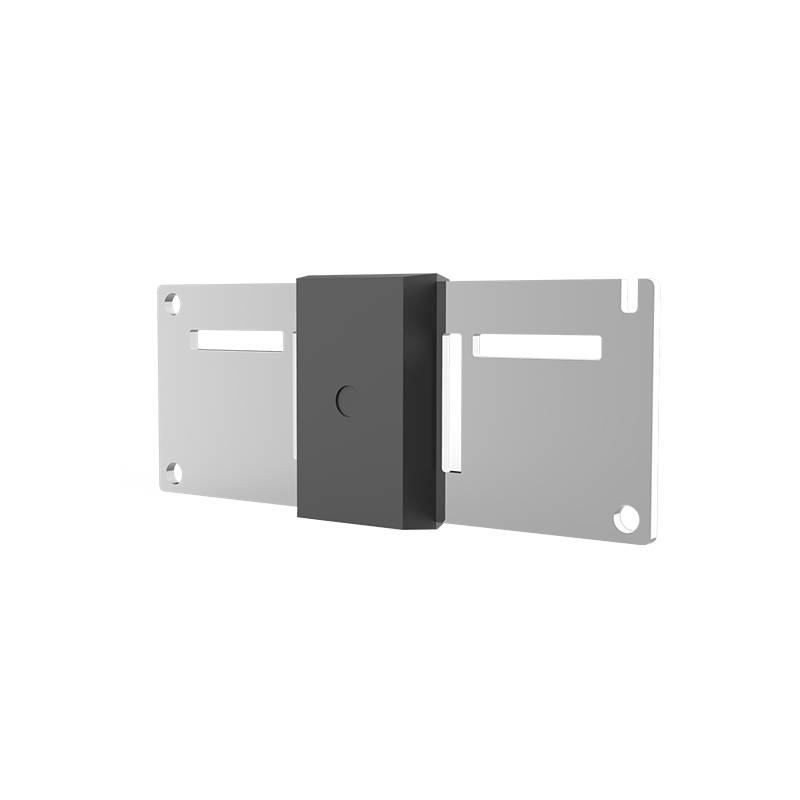

Horizontal and Vertical Lead Module

Name: Horizontal and Vertical Lead Module
Rating: 5 (221 reviews)

Modular design with optional outlet modes, diversified design for quick and convenient use. It features an optimized internal heat dissipation structure, stable reliability, breaks through the high-current bottleneck, and allows free switching between 18~35A.

product details

Product Name	VRM_Max (V)	Io_Max(A)	VF_Max(V)	Rated lo(A)	IFSM_Max(A)	IR@25℃IR(uA)	Tj（℃）	Status	Pdf
QCM1845	45	18	0.55	18	400	100	-55 ~ +200	Active
QCM2545	45	20	0.55	20	400	100	-55 ~ +200	Active
QCM3045	45	30	0.55	22	400	100	-55 ~ +200	Active
QCM4045	45	40	0.55	25	400	100	-55 ~ +200	Active
QCM4045B	45	40	0.55	29	400	200	-55 ~ +200	Active
QCM5045	45	50	0.53	30	400	200	-55 ~ +200	Active
QCM5045B	45	50	0.53	30	400	100	-55 ~ +200	Active
QCM5045C	45	50	0.55	32	400	100	-55 ~ +200	Active
QCM6045	45	60	0.52	35	400	200	-55 ~ +200	Active
