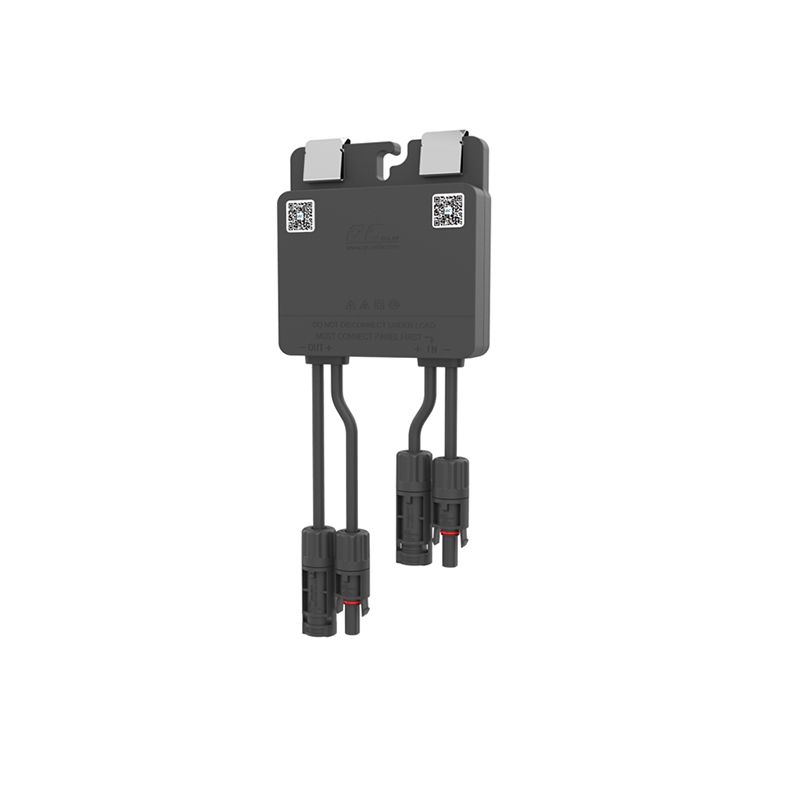

Smarttrack03-plus PV Module-level Power Optimizer

Smarttrack03-plus offers the PV modulelevel optimization and better flexibility of system design and installation.
icon21ger

Convenient

icon220x5

Synergy

icon23j5a

Security

icon200yf

custom-made

Technical Data

Smarttrack03-plus

Input(DC)

Maximum Input Voltage

80V DC

MPPT Operating Range

12~80V DC

Maximum Input Current

20A DC

Maximum Short-circuit Current

22A DC

Maximum Rated Input Power

700W

Output(DC)

Maximum Output Voltage

80V DC

Maximum Output Current

20A DC

Output Shutdown Voltage

1.0V DC

Maximum Efficiency

99.5%

Communication

Communication

PLC

Protection

Over Temperature Protection

Yes

General Data

Connector

QC4.10 /MC4

Dimensions(W x L x H)

107.3x126.9x24 mm

Input Wire Length

0.5 m & customize

Output Wire Length

1 m & customize

Operating Temperature Range

-40℃~+85℃

Standard(s) For Safety

IEC62109-1; EN 61000-6-1/3

Protection Rating

IP68

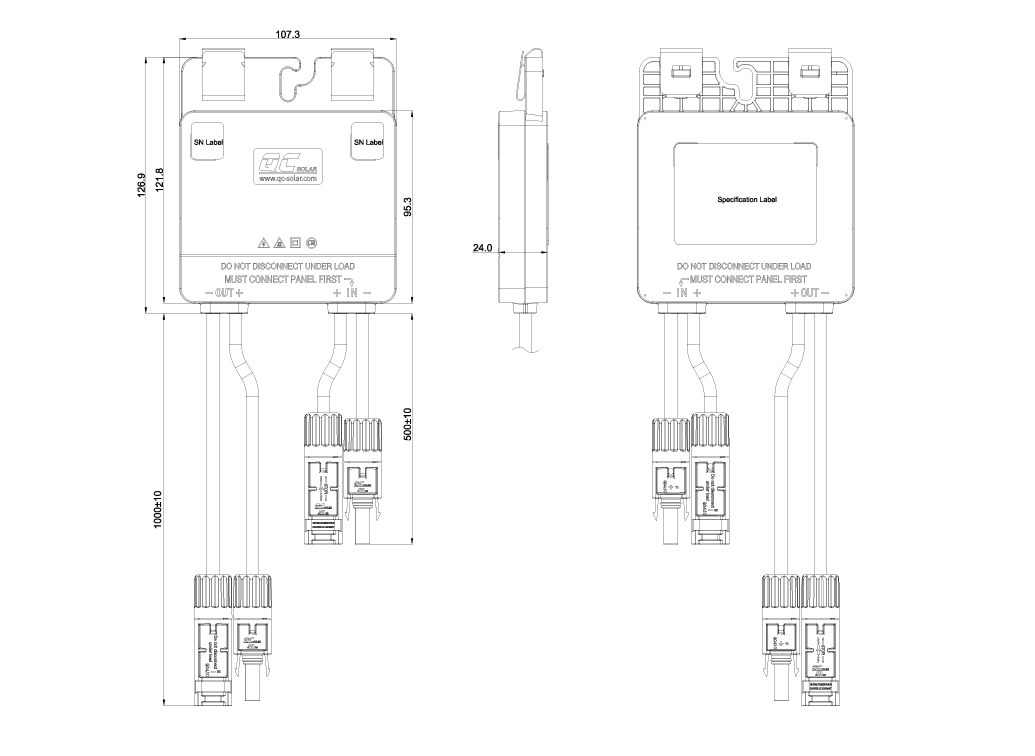

Dimensions(mm)

0b632fa7111b490b881dab767682c813
Smarttrack03-plus is used for Module-level power optimization, its excellent performance can adapt to complex and changing installation scenarios, reducing performance mismatch, hot spots and other problems during the lifetime of the PV module, improving the optimization power and bringing more benefits to clients.
Optimize PV System power
The Smarttrack03 Power Optimizer improves the power and yield of the entire system by tracking the maximum power point. DC-DC converters are connected to every PV module in the field to ensure maximum power from the module, which can be installed on rooftop, ground, or carport solar projects, among others.
More power and revenue
The Smarttrack03 Power Optimizer enables each module in a PV array to work independently. Poor performance of one module does not affect the others, thus eliminating power losses due to shading, soiling or aging and improving overall power generation.
More Flexibility
Easily meet your most complex project layouts by placing Smarttrack03 Power Optimizers at multiple orientations, tilts and on different types of modules in the same string using Maximum Power Point Tracking.
  • smarttrack-048bp
01

Distributed PV

Ensures shaded modules max power output by adjusting optimizer voltage/current. Modules work at optimal MPPs w/o interference.

02

PV Plant

Optimizer circuits regulate module current/voltage individually, boosting DC capacity & overall power.

03

Ind./Comm.

High-quality roofs used; shadows/obstructions limit remaining roofs. Power optimizers maximize output in current env.

04

Rooftop PV

Large areas, complex structures & shading on commercial roofs cause uneven illumination, impacting power efficiency. Photovoltaic optimizers widely used to solve this.
