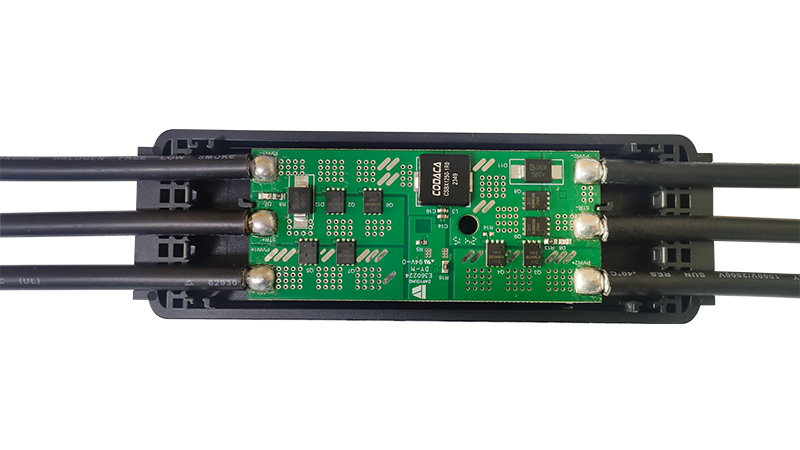

QC Solar Smarttrack05 PV Module-level Rapid Shutdown

Smarrtrack 05 is an outstanding innovation. It has an extremely low temperature rise (<30℃@30A) and "ON Resistance" (<1.5mΩ). It can withstand up to 175 °C, meets SunSpec requirements. Metal clip mounting is convenient. Customization is supported. With a dedicated chip and minimalist circuitry, it's a reliable choice with global patent licensing.
icon21ger

Convenient

icon220x5

Synergy

icon23j5a

Security

icon200yf

custom-made

Technical Data

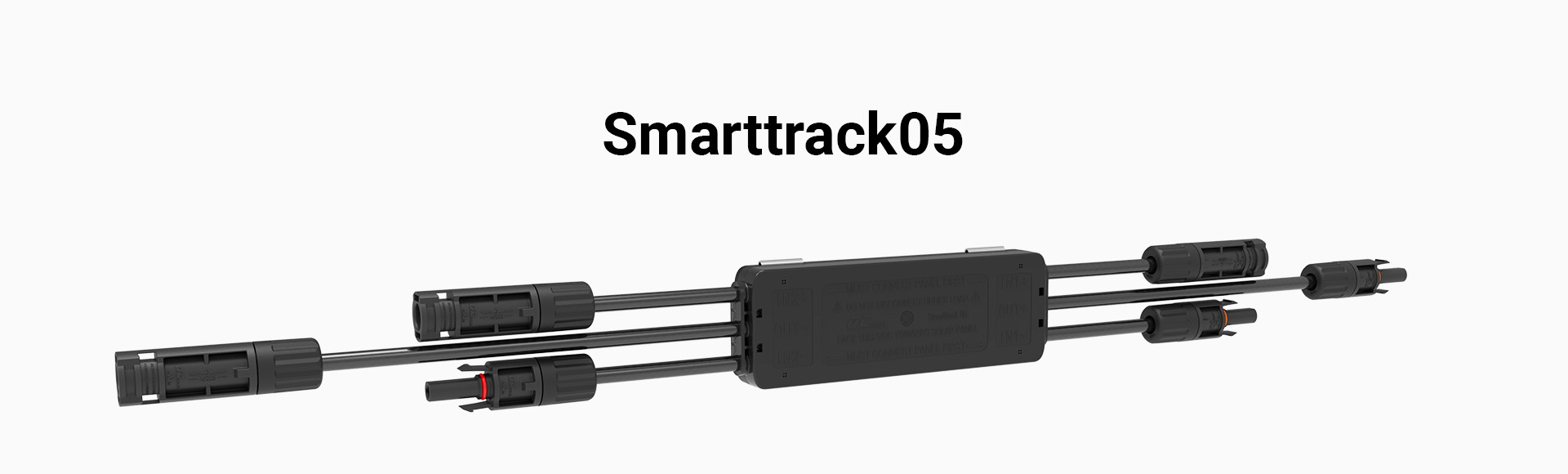

Smarttrack05

Input(DC)

Input Operating Voltage Range

8~80V DC per Channel

Maximum Input Current

30A DC per Channel

Output(DC)

Output Operating Voltage Range

16 ~ 160V DC

System Voltage

1500V DC

Maximum Output Current

30A DC

Protection

Over Temperature Protection

Yes

General Data

Connector

QC4.10 /MC4

Weight(including cables)

735g

OD Of Wire

6.4mm

Dimensions(W x L x H)

149 x 49 x 22 mm

Input Wire Length

0.52 m & customize

Output Wire Length

2.4 m & customize

Operating Temperature Range

-40℃~+85℃

Standard(s) For Safety

IEC62109-1; EN 61000-6-1/3

Altitude

6000m

Protection Rating

IP68

Dimensions(mm)

product-description1q5g
Smarttrack 05: Revolutionizing Technological Advancements
QC Solar Smarttrack 05 is a remarkable innovation that stands out in the field of technology with its exceptional features. It offers an extremely low temperature rise, maintaining a stable performance even at a current of 30A with the temperature increase being less than 30℃. This ensures efficient operation without the risk of overheating, enhancing its reliability and durability.

The "ON Resistance" of Smarttrack 05 is incredibly low, less than 1.5mΩ, enabling smooth power transmission and minimizing energy loss. It can withstand temperatures up to 175 °C, demonstrating its robustness and ability to perform under demanding conditions.

Meet SunSpec requirements Smarttrack 05 ensures seamless integration and compatibility with various systems. The metal clip mounting method makes the installation process simple and convenient, saving time and effort.
Customization is also supported, allowing it to be tailored to specific requirements, providing flexibility and meeting diverse needs. The dedicated chip and minimalist circuitry contribute to its optimized performance and enhanced efficiency.

With global patent licensing, Smarttrack 05 represents a cutting-edge solution that combines advanced technology, reliability, and customization options. It is set to make a significant impact and drive technological progress in multiple industries. Whether in industrial applications or advanced systems, Smarttrack 05 proves to be a reliable and efficient choice, opening up new possibilities for a wide range of technological endeavors.
product-description1zdd
01

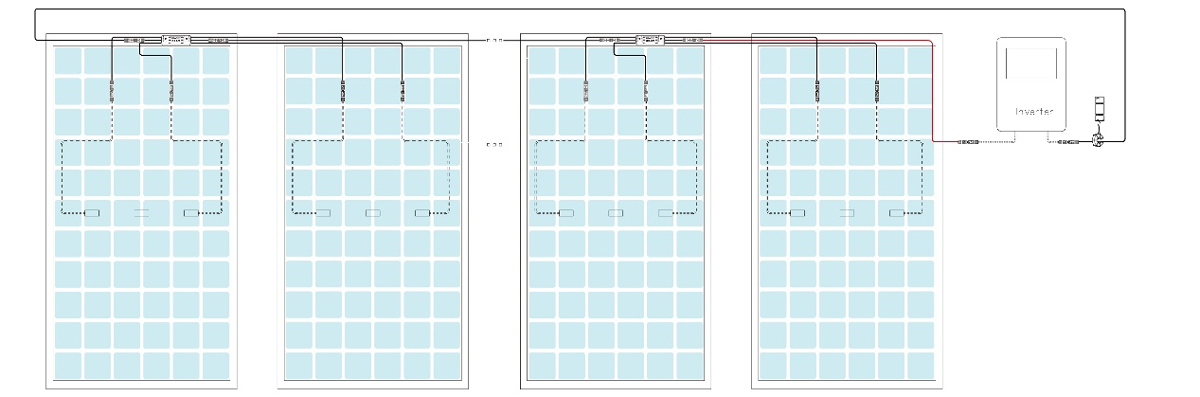

Residential PV systems

In home PV systems, PV rapid shutdowns are used to quickly reduce the voltage below a safe voltage in case of an emergency such as a fire, to safeguard the family.

02

Photovoltaic power stations

In power stations, PV rapid shutdowns are used to quickly reduce the voltage below the safe voltage in the event of a fire, reducing damage and safeguarding the surrounding environment.

03

Commercial building PV systems

PV systems are usually installed on the roof, and the rapid shutdowns are able to reduce the voltage to below the safe voltage in case of failure or other emergencies, to protect personal safety.
